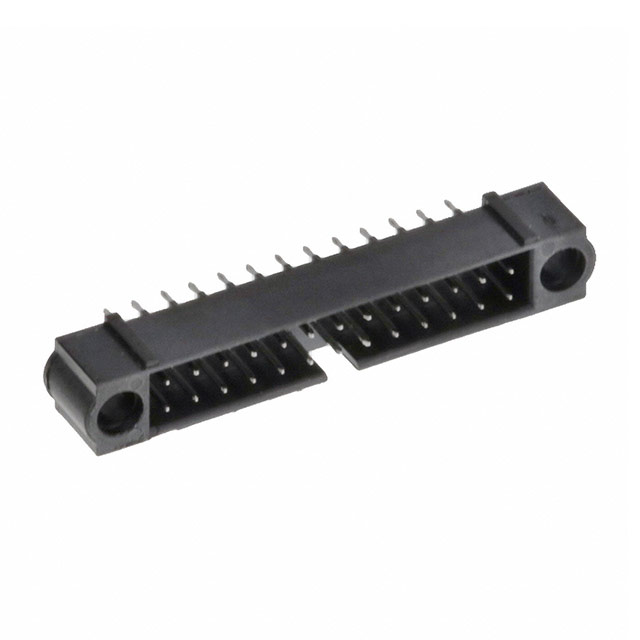

M225-5202646

Obsolete

Harwin Inc.

CONN HEADER VERT 26POS 2MM

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN HEADER VERT 26POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	M225-5202646

Connector Type	Plug
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-In
Features	Mating Flange, Polarizing Key
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Material	Insulation Material	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Style	Termination	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish - Post	Number of Positions	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Color
Harwin Inc. M225-5202646	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Push-In	UL94 V-0	All	Plug	118.1 µin	3 µm	Shrouded - 4 Wall	Circular	0.079 in	2 mm	0.079 in	2 mm	5.6 mm	0.22 in	3 A	2	-55 °C	125 °C	Board to Cable/Wire	Solder	0.13 in	3.3 mm	Through Hole	Tin	26	Mating Flange Polarizing Key	3 µm	118.1 µin	Male Pin	Black
Harwin Inc. M225-5203446	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Push-In	UL94 V-0	All	Plug	118.1 µin	3 µm	Shrouded - 4 Wall	Circular	0.079 in	2 mm	0.079 in	2 mm	5.6 mm	0.22 in	3 A	2	-55 °C	125 °C	Board to Cable/Wire	Solder	0.13 in	3.3 mm	Through Hole	Tin	34	Mating Flange Polarizing Key	3 µm	118.1 µin	Male Pin	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 26 position 0.079" (2.00mm)
