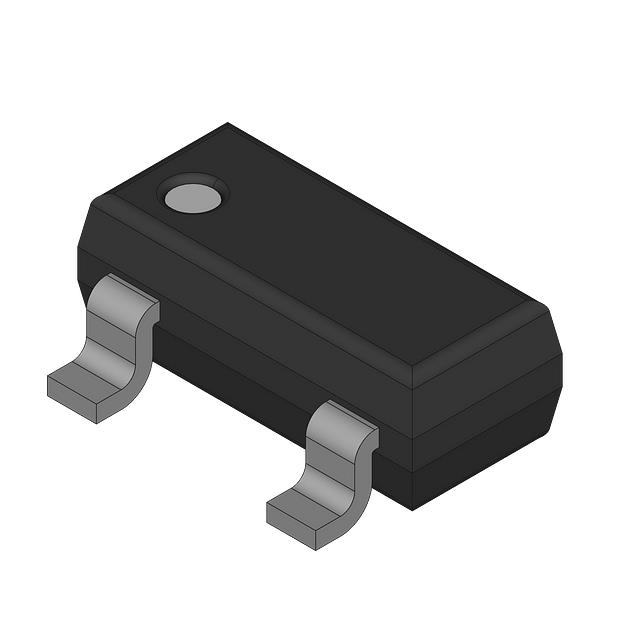

MAX810TEUR-T

Active

Analog Devices Inc./Maxim Integrated

IC SUPERVISOR 3PIN MPU RESET

Deep-Dive with AI

Search across all available documentation for this part.

MAX810TEUR-T

Active

Analog Devices Inc./Maxim Integrated

IC SUPERVISOR 3PIN MPU RESET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MAX810TEUR-T

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output	Totem Pole, Push-Pull
Package / Case	SOT-23-3, TO-236-3, SC-59
Reset	Active High
Reset Timeout [Min]	140 ms
Supplier Device Package	SOT-23-3
Type	Simple Reset/Power-On Reset
Voltage - Threshold	3.08 V

MAX810 Series

Part	Reset Timeout [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Supplier Device Package	Reset	Number of Voltages Monitored	Package / Case	Mounting Type	Output	Voltage - Threshold
Analog Devices Inc./Maxim Integrated MAX810REXR-T	140 ms	-40 °C	125 °C	Simple Reset/Power-On Reset	SC-70-3	Active High	1	SC-70 SOT-323	Surface Mount	Push-Pull Totem Pole	2.63 V
Analog Devices Inc./Maxim Integrated MAX810TEUR-T	140 ms	-40 °C	105 °C	Simple Reset/Power-On Reset	SOT-23-3	Active High	1	SC-59 SOT-23-3 TO-236-3	Surface Mount	Push-Pull Totem Pole	3.08 V
Analog Devices Inc./Maxim Integrated MAX810MEUR+T10	140 ms	-40 °C	105 °C	Simple Reset/Power-On Reset	SOT-23-3	Active High	1	SC-59 SOT-23-3 TO-236-3	Surface Mount	Push-Pull Totem Pole
Analog Devices Inc./Maxim Integrated MAX810SEUR-T	140 ms	-40 °C	105 °C	Simple Reset/Power-On Reset	SOT-23-3	Active High	1	SC-59 SOT-23-3 TO-236-3	Surface Mount	Push-Pull Totem Pole	2.93 V
Analog Devices Inc./Maxim Integrated MAX810REUR+T	140 ms	-40 °C	105 °C	Simple Reset/Power-On Reset	SOT-23-3	Active High	1	SC-59 SOT-23-3 TO-236-3	Surface Mount	Push-Pull Totem Pole	2.63 V
Analog Devices Inc./Maxim Integrated MAX810LEXR+T	140 ms	-40 °C	125 °C	Simple Reset/Power-On Reset	SC-70-3	Active High	1	SC-70 SOT-323	Surface Mount	Push-Pull Totem Pole	4.63 V
Analog Devices Inc./Maxim Integrated MAX810MEUR-TG071
Analog Devices Inc./Maxim Integrated MAX810LEUR+T	140 ms	-40 °C	105 °C	Simple Reset/Power-On Reset	SOT-23-3	Active High	1	SC-59 SOT-23-3 TO-236-3	Surface Mount	Push-Pull Totem Pole	4.63 V
Analog Devices Inc./Maxim Integrated MAX810ZEXR-T	140 ms	-40 °C	125 °C	Simple Reset/Power-On Reset	SC-70-3	Active High	1	SC-70 SOT-323	Surface Mount	Push-Pull Totem Pole	2.32 V
Analog Devices Inc./Maxim Integrated MAX810REUR+	140 ms	-40 °C	105 °C	Simple Reset/Power-On Reset	SOT-23-3	Active High	1	SC-59 SOT-23-3 TO-236-3	Surface Mount	Push-Pull Totem Pole	2.63 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	211	$ 1.42

Description

General part information

MAX810 Series

Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3

Documents

Technical documentation and resources

No documents available
