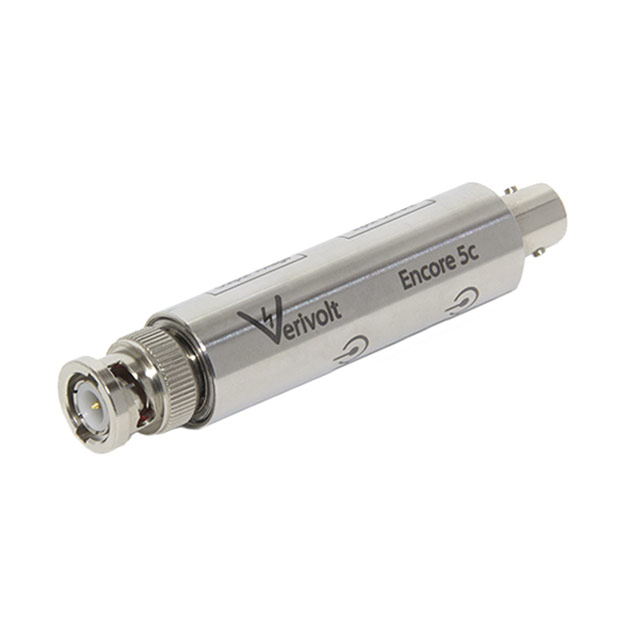

ENCORE (1A)
ActiveVerivolt LLC
TRANSDUCER CURRENT SENS SHUNT 1A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ENCORE (1A)
ActiveVerivolt LLC
TRANSDUCER CURRENT SENS SHUNT 1A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ENCORE (1A) |
|---|---|
| Accuracy | 0.2 % |
| Input Range [Max] | 1 A |
| Input Range [Min] | 0 A |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -35 °C |
| Output | 100 mV |
| Response Time | 8 ns |
| Termination Style | BNC |
| Type | Current Transducer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 285.73 | |
| 10 | $ 276.20 | |||
| 25 | $ 257.16 | |||
Description
General part information
ENCORE Series
Current Transducer 0 ~ 1A Input ±100mV Output Free Hanging (In-Line)
