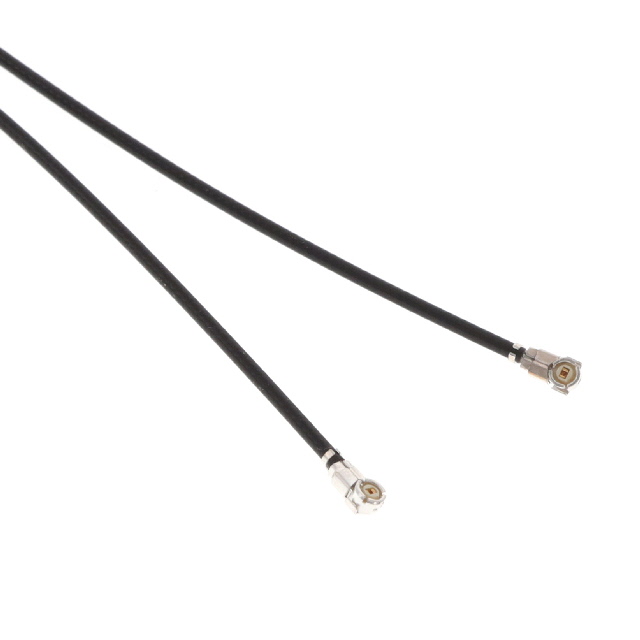

U.FL-2LPHF6-088N2T-A-200

Active

Hirose Electric USA, Inc.

CBL ASSY U.FL PLUG-PLUG 7.874"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

U.FL-2LPHF6-088N2T-A-200

Active

Hirose Electric USA, Inc.

CBL ASSY U.FL PLUG-PLUG 7.874"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	U.FL-2LPHF6-088N2T-A-200

1st Connector	U.FL (UMCC) Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type [diameter]	1.37 mm
Color	Black
Frequency - Max [Max]	6000 MHz
Length	7.874 in
Length	200 mm
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to U.FL (UMCC)

U.FL-2LPHF Series

...

Part	2nd Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]	Cable Type [diameter]	2nd Connector	1st Connector Mounting Type	Color	1st Connector	Cable Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	1st Contact Gender	Style	Length	Length	Length	Overall Impedance	Cable Type
Hirose Electric USA, Inc. U.FL-2LPHF6-088N1T-A-35	Free Hanging (In-Line)	Female	1.378 in	35 mm	1.37 mm	U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Gray	U.FL (UMCC) Plug Right Angle	50 Ohms	90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)
Hirose Electric USA, Inc. U.FL-2LPHF6-088N2T-A-100	Free Hanging (In-Line)	Female			1.37 mm	U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Black	U.FL (UMCC) Plug Right Angle		90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)	1 m	3.3 ft	39.4 in	50 Ohms
Hirose Electric USA, Inc. U.FL-2LPHF6-066N1-A-400	Free Hanging (In-Line)	Female				U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Gray	U.FL (UMCC) Plug Right Angle	50 Ohms	90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)	400 mm		15.75 "		1.32mm OD Coaxial Cable
Hirose Electric USA, Inc. U.FL-2LPHF6-066N1-A-650	Free Hanging (In-Line)	Female				U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Gray	U.FL (UMCC) Plug Right Angle	50 Ohms	90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)	650 mm		25.59 in		1.32mm OD Coaxial Cable
Hirose Electric USA, Inc. U.FL-2LPHF6-04N2TV-A-70	Free Hanging (In-Line)	Female			0.81 mm	U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Black	U.FL (UMCC) Plug Right Angle	50 Ohms	90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)	70 mm		2.756 "		Coaxial Cable
Hirose Electric USA, Inc. U.FL-2LPHF6-088N2T-A-200	Free Hanging (In-Line)	Female			1.37 mm	U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Black	U.FL (UMCC) Plug Right Angle		90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)	200 mm		7.874 in	50 Ohms
Hirose Electric USA, Inc. U.FL-2LPHF6-068N1T-A-300	Free Hanging (In-Line)	Female	11.811 in	300 mm		U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Gray	U.FL (UMCC) Plug Right Angle	50 Ohms	90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)					1.13mm OD Coaxial Cable
Hirose Electric USA, Inc. U.FL-2LPHF6-066N1-A-150	Free Hanging (In-Line)	Female	5.906 "	150 mm		U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Gray	U.FL (UMCC) Plug Right Angle		90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)				50 Ohms	1.32mm OD Coaxial Cable
Hirose Electric USA, Inc. U.FL-2LPHF6-04N2TV-A-110	Free Hanging (In-Line)	Female	4.331 in	110 mm	0.81 mm	U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Black	U.FL (UMCC) Plug Right Angle	50 Ohms	90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)					Coaxial Cable
Hirose Electric USA, Inc. U.FL-2LPHF6-066N2-A-500	Free Hanging (In-Line)	Female				U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Black	U.FL (UMCC) Plug Right Angle		90 °C	-40 °C	6000 MHz	Female	U.FL (UMCC) to U.FL (UMCC)	50 cm		19.69 "	50 Ohms	1.32mm OD Coaxial Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

U.FL-2LPHF Series

Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 1.37mm OD Coaxial Cable 7.874" (200.00mm)
