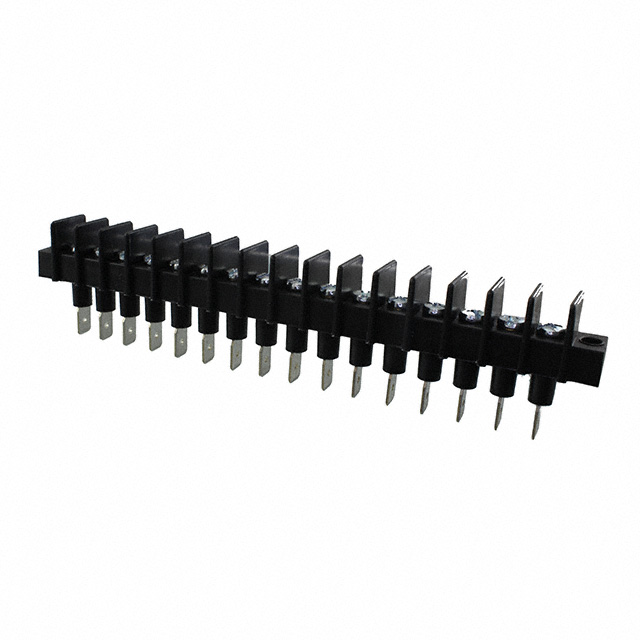

CFTQ-16

Active

Curtis Industries

CONN BARRIER STRP 16CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFTQ-16

Active

Curtis Industries

CONN BARRIER STRP 16CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFTQ-16

Barrier Type	2 Wall (Dual)
Bottom Termination	Quick Connect, Insulated
Bottom Termination [custom]	0.25 "
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	16
Number of Rows	1
Number of Wire Entries	16
Operating Temperature	140 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

CFT Series

Part	Voltage Rating	Current Rating (Amps)	Features	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Barrier Type	Material Flammability Rating	Bottom Termination	Operating Temperature	Terminal Screw Material	Terminal Block Type	Number of Wire Entries	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Top Termination	Color	Material - Insulation	Bottom Termination [custom]
Curtis Industries CFT-20	300 VDC	20 A	Flange	20	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Solder Turret Insulated	140 °C	Steel	Barrier Block	20	Chassis Panel	9.53 mm	0.375 in	1	Screws	Black	Polyester Thermoplastic
Curtis Industries CFTQ-16	300 VDC	20 A	Flange	16	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Insulated Quick Connect	140 °C	Steel	Barrier Block	16	Chassis Panel	9.53 mm	0.375 in	1	Screws	Black	Polyester Thermoplastic	0.25 "
Curtis Industries CFTQ-2	300 VDC	20 A	Flange	2	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Insulated Quick Connect	140 °C	Steel	Barrier Block	2	Chassis Panel	9.53 mm	0.375 in	1	Screws	Black	Polyester Thermoplastic	0.25 "
Curtis Industries CFTQ-19	300 VDC	20 A	Flange	19	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Insulated Quick Connect	140 °C	Steel	Barrier Block	19	Chassis Panel	9.53 mm	0.375 in	1	Screws	Black	Polyester Thermoplastic	0.25 "
Curtis Industries CFTW-2	300 VDC	20 A	Flange	2	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Solder Turret Insulated	140 °C		Barrier Block	2	Chassis Panel	9.53 mm	0.375 in	1	Screws with Captive Plate	Black	Polyester Thermoplastic
Curtis Industries CFTW-21	300 VDC	20 A	Flange	21	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Solder Turret Insulated	140 °C		Barrier Block	21	Chassis Panel	9.53 mm	0.375 in	1	Screws with Captive Plate	Black	Polyester Thermoplastic
Curtis Industries CFTW-14	300 VDC	20 A	Flange	14	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Solder Turret Insulated	140 °C		Barrier Block	14	Chassis Panel	9.53 mm	0.375 in	1	Screws with Captive Plate	Black	Polyester Thermoplastic
Curtis Industries CFTW-24	300 VDC	20 A	Flange	24	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Solder Turret Insulated	140 °C		Barrier Block		Chassis Panel	9.53 mm	0.375 in	1	Screws with Captive Plate	Black	Polyester Thermoplastic
Curtis Industries CFTQ-9	300 VDC	20 A	Flange		12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Insulated Quick Connect	140 °C	Steel	Barrier Block	9	Chassis Panel	9.53 mm	0.375 in	1	Screws	Black	Polyester Thermoplastic	0.25 "
Curtis Industries CFTQ-18	300 VDC	20 A	Flange	18	12 AWG	22 AWG	2 Wall (Dual)	UL94 V-0	Insulated Quick Connect	140 °C	Steel	Barrier Block	18	Chassis Panel	9.53 mm	0.375 in	1	Screws	Black	Polyester Thermoplastic	0.25 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.59
		10	$ 36.91
		25	$ 33.44
		50	$ 31.43
		100	$ 29.83
		250	$ 28.24

Description

General part information

CFT Series

16 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
