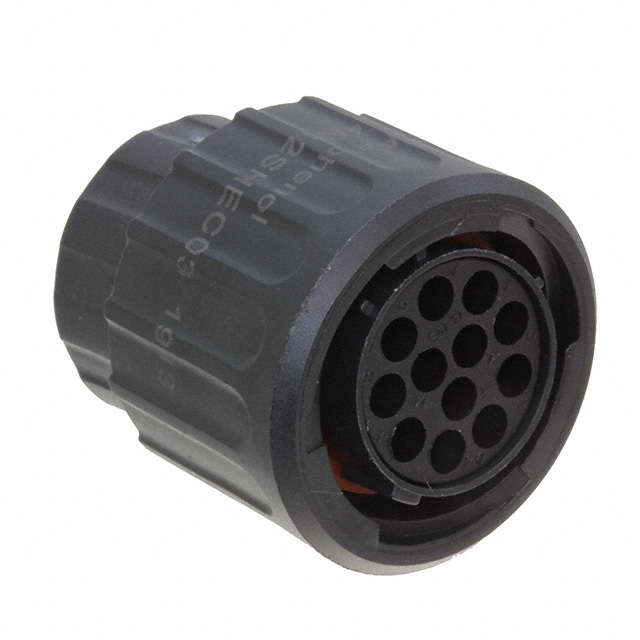

RTS6BS14N12SHEC03
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 12POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
RTS6BS14N12SHEC03
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 12POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS6BS14N12SHEC03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Washer, 1 Seal, 1 Connector, 1 Ring, 1 O-Ring, 1 Backshell |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 14-12 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.20 | |
| 10 | $ 10.91 | |||
| 25 | $ 9.87 | |||
| 50 | $ 9.16 | |||
| 100 | $ 8.51 | |||
| 250 | $ 7.76 | |||
| 500 | $ 7.25 | |||
| 1000 | $ 6.78 | |||
Description
General part information
RTS6BS14 Series
12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
