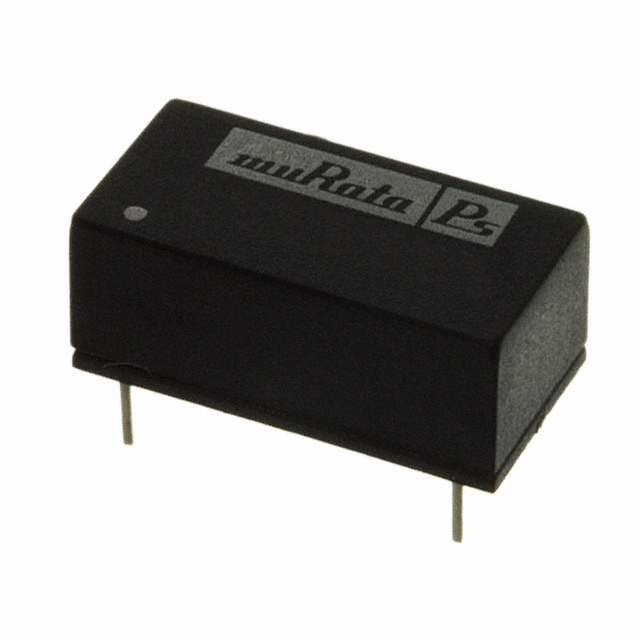

NMH2409DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 2W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Type	Applications	Number of Outputs	Mounting Type	Power (Watts)	Voltage - Output 2	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NMH2409DC	9 V	Isolated Module	ITE (Commercial)	2	Through Hole	2 W	-9 V	26.4 V	14-DIP Module 6 Leads	1000 V	0.3 "	0.39 "	7.6 mm	19.6 mm	9.9 mm	0.77 in	85 %	85 °C	-40 °C	21.6 V	111 mA	111 mA
Murata Power Solutions Inc. NMH2415DC	15 V	Isolated Module	ITE (Commercial)	2	Through Hole	2 W	-15 V	26.4 V	14-DIP Module 6 Leads	1000 V	0.3 "	0.39 "	7.6 mm	19.6 mm	9.9 mm	0.77 in	86 %	85 °C	-40 °C	21.6 V			67 mA	67 mA
Murata Power Solutions Inc. NMH2405DC	5 V	Isolated Module	ITE (Commercial)	2	Through Hole	2 W	-5 V	26.4 V	14-DIP Module 6 Leads	1000 V	0.3 "	0.39 "	7.6 mm	19.6 mm	9.9 mm	0.77 in	81 %	85 °C	-40 °C	21.6 V
Murata Power Solutions Inc. NMH2412DC	12 V	Isolated Module	ITE (Commercial)	2	Through Hole	2 W	-12 V	26.4 V	14-DIP Module 6 Leads	1000 V	0.3 "	0.39 "	7.6 mm	19.6 mm	9.9 mm	0.77 in	86 %	85 °C	-40 °C	21.6 V			83 mA		83 mA
Murata Power Solutions Inc. NMH2412SC	12 V	Isolated Module	ITE (Commercial)	2	Through Hole	2 W	-12 V	26.4 V	7-SIP Module 5 Leads	1000 V	0.4 "	0.3 "	10.2 mm	19.6 mm	7.6 mm	0.77 in	86 %	85 °C	-40 °C	21.6 V			83 mA		83 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 21.6V - 26.4V Input

Technical documentation and resources
