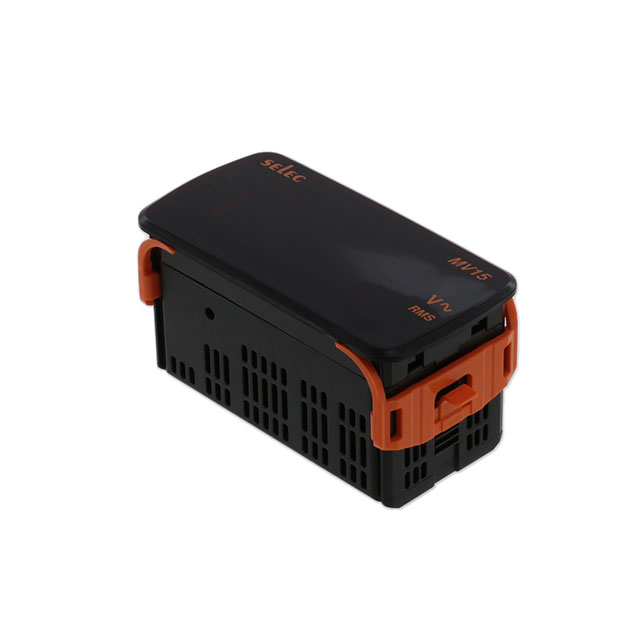

MV15-110V-CU

Active

Altech Corporation

VOLTMETER 0-516VAC LED PNL MNT

Search across all available documentation for this part.

Active

Altech Corporation

VOLTMETER 0-516VAC LED PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MV15-110V-CU

Display Type	LED - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	516 VAC/DC
Measuring Range [Min]	0 VAC
Measuring Type	Voltage
Number of Characters Per Row	3
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	46 mm
Termination Style	Screw Terminal
Type	Voltmeter
Voltage - Supply	110 VAC/DC

Part	Type	Voltage - Supply	Measuring Range [Min]	Measuring Range [Max]	Termination Style	Display Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Number of Characters Per Row	Measuring Type
Altech Corporation MV15-DC-200V-110V-CU	Voltmeter	110 VAC/DC	0 VAC	516 VAC/DC	Screw Terminal	LED - Red Characters	55 °C	-10 °C	92 mm	46 mm	IP65 - Dust Tight Water Resistant	3	Voltage
Altech Corporation MV15-110V-CU	Voltmeter	110 VAC/DC	0 VAC	516 VAC/DC	Screw Terminal	LED - Red Characters	55 °C	-10 °C	92 mm	46 mm	IP65 - Dust Tight Water Resistant	3	Voltage
Altech Corporation MV15-DC-20V-110V-CU

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltmeter LED - Red Characters Display Panel Mount
