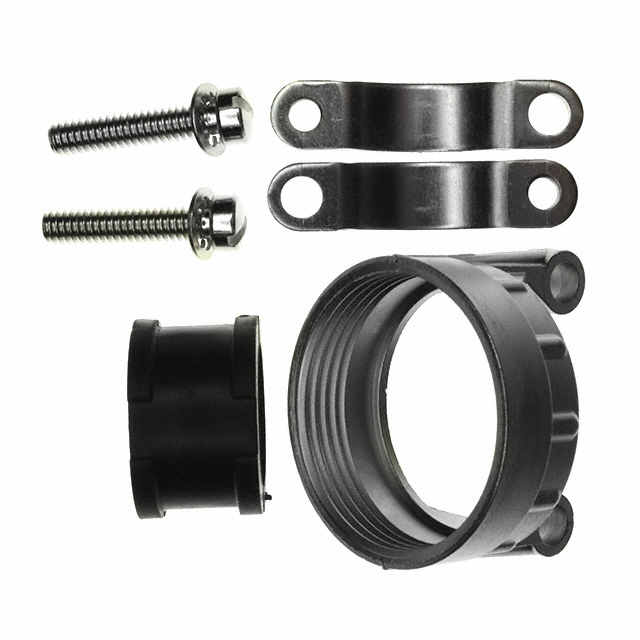

UT020AC

Active

Souriau-Sunbank by Eaton

CONN BCKSH W CLP SZ20 1 3/16-18

Deep-Dive with AI

Search across all available documentation for this part.

UT020AC

Active

Souriau-Sunbank by Eaton

CONN BCKSH W CLP SZ20 1 3/16-18

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT020AC

Cable Exit	180 °
Cable Opening [custom]	0.63 in
Cable Opening [custom]	16 mm
Color	Silver
Diameter - Outside [diameter]	1.28 in
Diameter - Outside [diameter]	32.51 mm
Features	Clamp Screws
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Material	Metal
Material Flammability Rating	UL94 V-0
Shell Size - Insert	20
Shielding	Unshielded
Thread Size	1 3/16-18 UNEF
Type	Backshell, Cable Clamp

UT020 Series

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	For Use With/Related Products	Type	Cable Exit	Material Flammability Rating	Color	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Material	Thread Size	Shielding	Accessory Type	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening	Cable Opening	Includes	Plating
Souriau-Sunbank by Eaton UT020AC	1.28 in	32.51 mm	Clamp Screws	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp	180 °	UL94 V-0	Silver	0.63 in	16 mm	20	Metal	1 3/16-18 UNEF	Unshielded
Souriau-Sunbank by Eaton UT020DCG			Dust Tight Metal Chain Waterproof	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles				Silver			20	Metal			Cap (Cover) Dust
Souriau-Sunbank by Eaton UT020AD	1.437 in	36.5 mm		Trim Trio® UTO and UTOW Connectors	Backshell Heat Shrink Adapter	180 °		Silver			20	Metal	1 3/16-18 UNEF
Souriau-Sunbank by Eaton UT020JCL			Sealing Gland Strain Relief	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp	180 °	UL94 V-0	Silver			20	Brass	PG21	Unshielded		IP68 IP69K	24 mm	0.591 in	0.945 in	15 mm
Souriau-Sunbank by Eaton UT020LPGN			Clamp Screws Strain Relief	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp	90 °	UL94 V-0	Silver			20	Brass	PG21	Unshielded			26 mm	0.433 in	1.024 in	11 mm
Souriau-Sunbank by Eaton UT020JCSL			Sealing Gland Strain Relief	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp	180 °	UL94 V-0	Silver			20	Brass		Unshielded		IP68 IP69K
Souriau-Sunbank by Eaton UT020JCPGN			Clamp Screws Strain Relief	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp	180 °	UL94 V-0	Silver			20	Aluminum Alloy	PG21	Unshielded		IP65 - Dust Tight Water Resistant					0.874 in	22.2 mm	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers	Nickel
Souriau-Sunbank by Eaton UT020JCS			Sealing Gland Strain Relief	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp	180 °	UL94 V-0	Silver			20	Brass	PG21	Unshielded		IP68 IP69K
Souriau-Sunbank by Eaton UT020JC			Sealing Gland Strain Relief	Trim Trio® UTO and UTOW Connectors	Backshell Cable Clamp	180 °	UL94 V-0	Silver			20	Brass	PG21	Unshielded		IP68 IP69K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.87
		10	$ 21.76

Description

General part information

UT020 Series

Silver Connector Backshell, Cable Clamp 1 3/16-18 UNEF 20

Documents

Technical documentation and resources

No documents available
