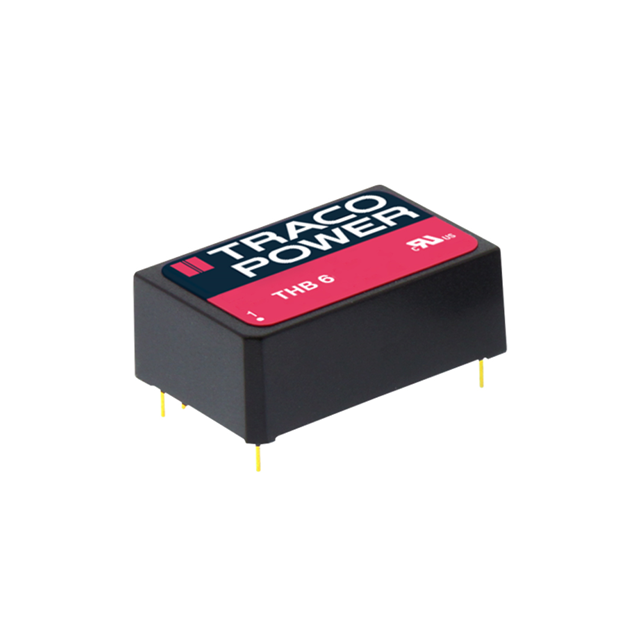

THB 6-4822

Active

Traco Power

DC DC CONVERTER +/-12V 6W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER +/-12V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Efficiency	Mounting Type	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Output 2	Type	Voltage - Isolation	Package / Case	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power THB 6-4823	15 V	80 %	Through Hole	ITE (Commercial) Medical	75 V	71 °C	-40 °C	2	SCP	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	6 W	-15 V	Isolated Module	3000 V	24-DIP Module 6 Leads	36 V
Traco Power THB 6-4822	12 V	80 %	Through Hole	ITE (Commercial) Medical	75 V	71 °C	-40 °C	2	SCP	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	6 W	-12 V	Isolated Module	3000 V	24-DIP Module 6 Leads	36 V	250 mA	250 mA
Traco Power THB 6-1212	12 V	78 %	Through Hole	ITE (Commercial) Medical	18 V	71 °C	-40 °C	1	SCP	20.3 mm	12 mm	1.25 "	31.8 mm	0.47 "	0.8 in	6 W		Isolated Module	3000 V	24-DIP Module 6 Leads	9 V			500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 53.58
