TE Connectivity Potter & Brumfield Relays

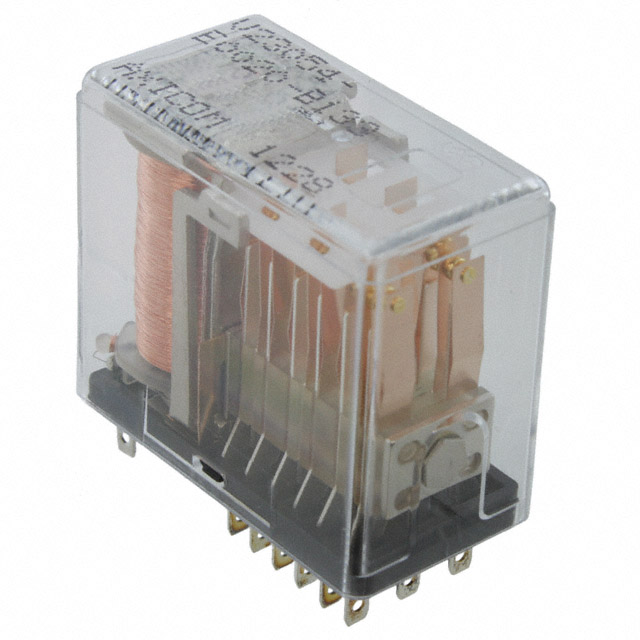

RELAY GEN PURPOSE 6PDT 2A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-1393813-6

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 6PDT 2A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-1393813-6

Coil Current	38.1 mA
Coil Resistance	630 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	6 Form C
Contact Form	6PDT
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	300 W, 250 VA
Mounting Type	Socketable
Must Operate Voltage	13 VDC
Operate Time	16 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	2 ms
Switching Voltage	150 VDC, 125 VAC
Termination Style	Plug In

1393813 Series

Part	Relay Type	Coil Voltage	Coil Type	Termination Style	Load - Max Switching	Contact Material	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Must Operate Voltage	Contact Form	Contact Form	Contact Rating (Current)	Coil Current	Mounting Type	Switching Voltage	Coil Resistance
TE Connectivity Potter & Brumfield Relays 3-1393813-6	General Purpose	24 VDC	Non Latching	Plug In	250 VA 300 W	Gold (Au) Silver (Ag)	16 ms	-40 °C	70 °C	2 ms	13 VDC	6 Form C	6PDT	2 A	38.1 mA	Socketable	125 VAC 150 VDC	630 Ohms
TE Connectivity Potter & Brumfield Relays 4-1393813-1	General Purpose	24 VDC	Non Latching	Plug In	250 VA 300 W	Gold (Au) Silver (Ag)	16 ms	-40 °C	70 °C	2 ms	20 VDC	6 Form C	6PDT	2 A	38.1 mA	Socketable	125 VAC 150 VDC	630 Ohms
TE Connectivity Potter & Brumfield Relays 9-1393813-6	General Purpose	110 VDC	Non Latching	Plug In		Gold (Au) Silver (Ag)	16 ms	-40 °C	70 °C	2 ms					12 mA	Socketable		9.2 kOhms
TE Connectivity Potter & Brumfield Relays 1393813-8
TE Connectivity Potter & Brumfield Relays 3-1393813-0	General Purpose	12.5 VDC	Non Latching	Plug In	250 VA 300 W	Gold (Au)	16 ms	-40 °C	70 °C	2 ms	10 VDC	6 Form C	6PDT	2 A	67.6 mA	Socketable	125 VAC 150 VDC	185 Ohms
TE Connectivity Potter & Brumfield Relays 7-1393813-4	General Purpose	20 VDC	Non Latching	Plug In		Gold (Au) Silver (Ag)	16 ms	-40 °C	70 °C	2 ms					51.3 mA	Socketable		390 Ohms
TE Connectivity Potter & Brumfield Relays 2-1393813-1	General Purpose		Non Latching	Plug In		Gold (Au) Silver (Ag)	16 ms	-40 °C	70 °C	2 ms						Socketable
TE Connectivity Potter & Brumfield Relays 1-1393813-2	General Purpose		Non Latching	Plug In			16 ms	-40 °C	70 °C	2 ms			6PST-NO (6 Form A)			Socketable
TE Connectivity Potter & Brumfield Relays 6-1393813-5	General Purpose	12 VDC	Non Latching	Plug In		Gold (Au) Silver (Ag)	16 ms	-40 °C	70 °C	2 ms					92.3 mA	Socketable		130 Ohms
TE Connectivity Potter & Brumfield Relays 1-1393813-9	General Purpose		Non Latching	Plug In			16 ms	-40 °C	70 °C	2 ms			6PST-NO (6 Form A)			Socketable
