450-V3-262-00-106101

Active

PRECI-DIP SA

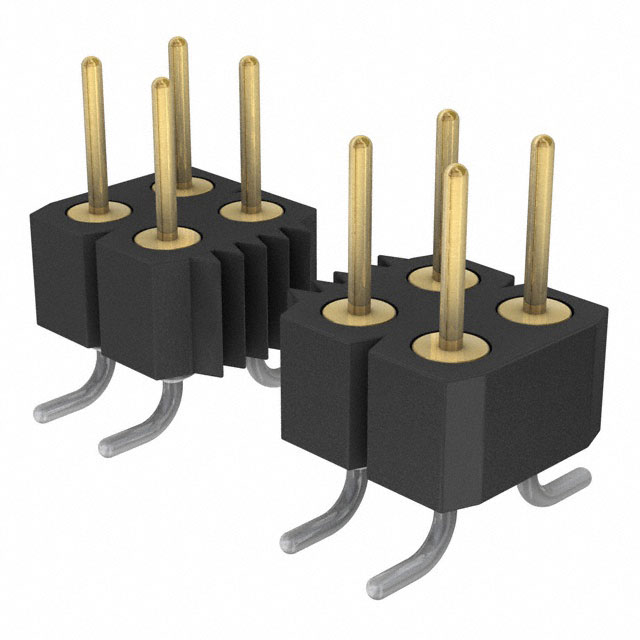

CONN HEADER SMD 62POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

450-V3-262-00-106101

Active

PRECI-DIP SA

CONN HEADER SMD 62POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	450-V3-262-00-106101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	62
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

450-V3 Series

Part	Voltage Rating	Contact Type	Contact Finish - Mating	Mounting Type	Material Flammability Rating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Material	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Overall Contact Length	Overall Contact Length	Number of Positions
PRECI-DIP SA 450-V3-236-00-006101	150 VDC	Male Pin	Gold	Through Hole	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	36	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm	0.114 in	2.9 mm	Header	10 mm	0.394 in
PRECI-DIP SA 450-V3-262-00-106101	150 VDC	Male Pin	Gold	Surface Mount	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	62	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm			Header
PRECI-DIP SA 450-V3-240-00-106101	150 VDC	Male Pin	Gold	Surface Mount	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	40	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm			Header
PRECI-DIP SA 450-V3-238-00-006101	150 VDC	Male Pin	Gold	Through Hole	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	38	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm	0.114 in	2.9 mm	Header	10 mm	0.394 in
PRECI-DIP SA 450-V3-264-00-006101	150 VDC	Male Pin	Gold	Through Hole	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	64	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm	0.114 in	2.9 mm	Header	10 mm	0.394 in
PRECI-DIP SA 450-V3-242-00-106101	150 VDC	Male Pin	Gold	Surface Mount	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	42	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm			Header
PRECI-DIP SA 450-V3-232-00-006101	150 VDC	Male Pin	Gold	Through Hole	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All		Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm	0.114 in	2.9 mm	Header	10 mm	0.394 in
PRECI-DIP SA 450-V3-216-00-006101	150 VDC	Male Pin	Gold	Through Hole	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All		Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm	0.114 in	2.9 mm	Header	10 mm	0.394 in	16
PRECI-DIP SA 450-V3-220-00-106101	150 VDC	Male Pin	Gold	Surface Mount	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	20	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm			Header
PRECI-DIP SA 450-V3-230-00-006101	150 VDC	Male Pin	Gold	Through Hole	UL94 V-0	Push-Pull	2.54 mm	0.1 in	2	0.141 in	3.6 mm	3 A	Tin	All	30	Black	29.5 Áin	0.75 Ám	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Unshrouded	-55 °C	125 °C	Circular	0.1 in	2.54 mm	0.114 in	2.9 mm	Header	10 mm	0.394 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 13.14

Description

General part information

450-V3 Series

Connector Header Surface Mount 62 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
