M80-8820242

Active

Harwin Inc.

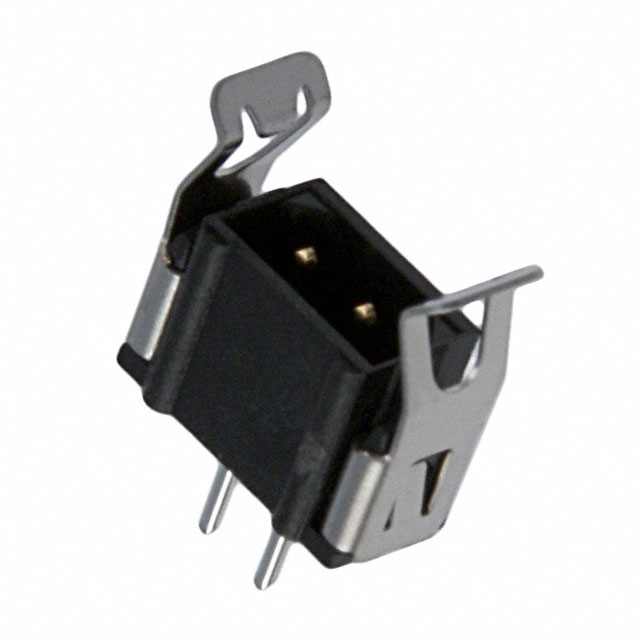

WIRE-TO-BOARD CONNECTOR, M80 SERIES, THROUGH HOLE, HEADER, 2, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80, M83 Series Spec Sheet +5

M80-8820242

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, M80 SERIES, THROUGH HOLE, HEADER, 2, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80, M83 Series Spec Sheet +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8820242

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Insulation Color	Black
Insulation Height	5.56 mm
Insulation Height [z]	0.219 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	13.46 mm, 7.23 mm, 10.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-882 Series

Part	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Type	Contact Material	Voltage Rating	Insulation Material	Number of Positions	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Insulation Height [z]	Insulation Height	Mounting Type	Contact Finish - Mating	Number of Rows	Contact Finish - Post	Insulation Color	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Termination	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Connector Type	Fastening Type	Contact Finish Thickness - Post
Harwin Inc. M80-8820242	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled	2	2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Tin	Black	UL94 V-0	3 µm	118.1 µin	0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock
Harwin Inc. M80-8820345	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled		2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Gold	Black	UL94 V-0	0.75 µm		0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock	29.5 µin
Harwin Inc. M80-8820222	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled	2	2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Tin-Lead	Black	UL94 V-0	3 µm	118.1 µin	0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock
Harwin Inc. M80-8820542	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled		2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Tin	Black	UL94 V-0	3 µm	118.1 µin	0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock
Harwin Inc. M80-8820442	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled	4	2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Tin	Black	UL94 V-0	3 µm	118.1 µin	0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock
Harwin Inc. M80-8820545	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled		2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Gold	Black	UL94 V-0	0.75 µm		0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock	29.5 µin
Harwin Inc. M80-8820445	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled	4	2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Gold	Black	UL94 V-0	0.75 µm		0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock	29.5 µin
Harwin Inc. M80-8820422	Shrouded - 4 Wall	29.5 Áin	0.75 Ám	Board to Board Cable	Male Pin	Phosphor Bronze	800 V	Polyphenylene Sulfide (PPS) Glass Filled	4	2.2 A	-55 °C	125 °C	7.23 mm 10.2 mm 13.46 mm	0.219 in	5.56 mm	Through Hole	Gold	1	Tin-Lead	Black	UL94 V-0	3 µm	118.1 µin	0.079 in	2 mm	Circular	Solder	All	0.118 in	3 mm	Header	Latch Lock
