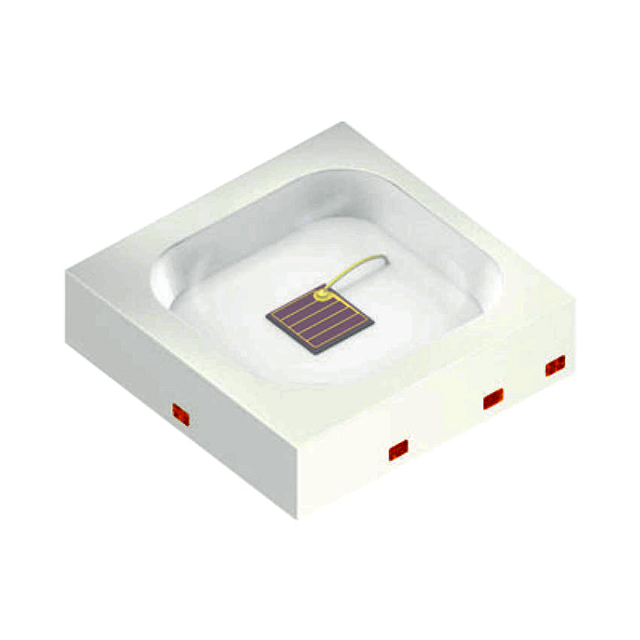

KS DDLM31.23-8E6G-68-C4U4-140-R18
Activeams-OSRAM USA INC.
LED RED CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KS DDLM31.23-8E6G-68-C4U4-140-R18
Activeams-OSRAM USA INC.
LED RED CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KS DDLM31.23-8E6G-68-C4U4-140-R18 |
|---|---|
| Color | Red |
| Current - Test | 140 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | Colorless |
| Lens Size | 2.25 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 5250 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2.25 mm |
| Size / Dimension [y] | 2.25 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2000 | $ 0.15 | |||
| Tape & Reel (TR) | 4000 | $ 0.15 | ||
| 8000 | $ 0.14 | |||
| 12000 | $ 0.13 | |||
| 20000 | $ 0.13 | |||
| 28000 | $ 0.13 | |||
| 40000 | $ 0.12 | |||
Description
General part information
KSDDLM31 Series
Red 632nm LED Indication - Discrete 2.2V 2-SMD, No Lead
