1TL1-5

Active

Honeywell Sensing and Productivity Solutions

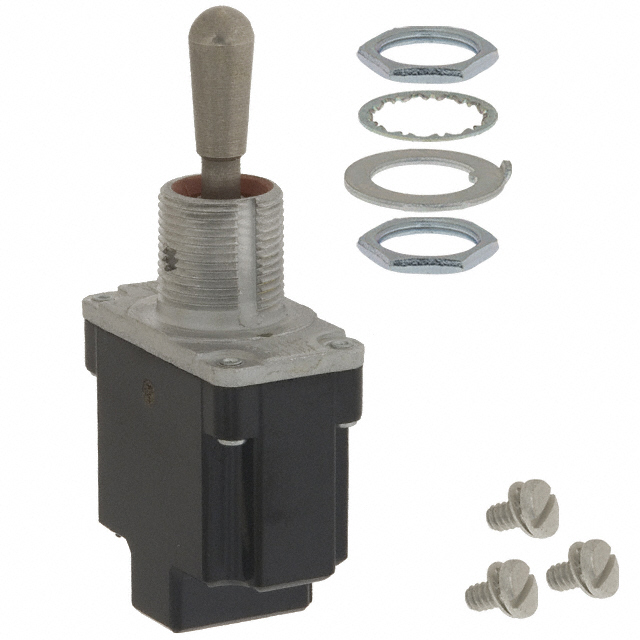

SWITCH TOGGLE SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1TL1-5

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1TL1-5

Actuator Length [x]	17.27 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

1TL1 Series

Part	Termination Style	Actuator Material	Actuator Length [x]	Bushing Thread	Actuator Type	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - AC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Switch Function	Ingress Protection	Features
Honeywell Sensing and Productivity Solutions 1TL1-5	Screw Terminal	Nickel Plated	17.27 mm	15/32-32	Standard Round	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	On-Off-Mom	Environment Sealed
Honeywell Sensing and Productivity Solutions 1TL1-8F	Screw Terminal	Nickel Plated	26.67 mm	15/32-32	Locking Lever	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	On-Mom	Environment Sealed
Honeywell Sensing and Productivity Solutions 1TL119-8-A03	Screw Terminal	Thermoplastic	29.13 mm	15/32-32	Flatted	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	On-Mom	Environment Sealed	Blue Actuator
Honeywell Sensing and Productivity Solutions 1TL119-7-A02	Screw Terminal	Thermoplastic	29.13 mm	15/32-32	Flatted	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	Mom-Off-Mom	Environment Sealed	Black Actuator
Honeywell Sensing and Productivity Solutions 1TL11-82	Screw Terminal	Nickel Plated	17.27 mm	15/32-32	Standard Round	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	On-Mom	Environment Sealed
Honeywell Sensing and Productivity Solutions 1TL1-51	Screw Terminal	Nickel Plated	17.27 mm	15/32-32	Standard Round	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	On-Mom	Environment Sealed
Honeywell Sensing and Productivity Solutions 1TL1-5M	Screw Terminal	Nickel Plated	26.67 mm	15/32-32	Locking Lever	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	On-Off-Mom	Environment Sealed
Honeywell Sensing and Productivity Solutions 1TL11-3	Screw Terminal	Nickel Plated	17.27 mm	15/32-32	Standard Round	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	15 A	12.4 mm	On-On	Environment Sealed
Honeywell Sensing and Productivity Solutions 1TL119-3-A02	Screw Terminal	Thermoplastic	29.13 mm	15/32-32	Flatted	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	15 A	12.4 mm	On-On	Environment Sealed	Black Actuator
Honeywell Sensing and Productivity Solutions 1TL163-7	Screw Terminal	Nickel Plated	16.51 mm	15/32-32	Flatted	Non-Illuminated	71 °C	-65 ░C	SPDT	125 V	10 A	12.4 mm	Mom-Off-Mom	Environment Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.81
		10	$ 42.10
		25	$ 39.69
		50	$ 37.95
		100	$ 36.29
		250	$ 36.08

Description

General part information

1TL1 Series

Toggle Switch SPDT Panel Mount
