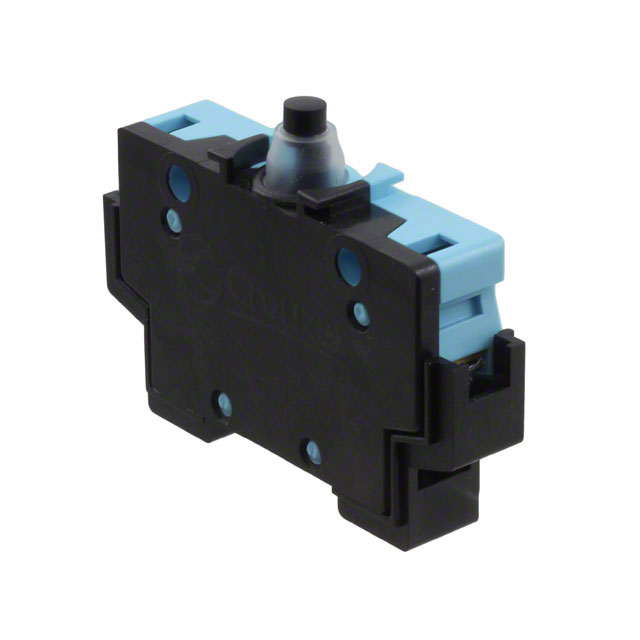

83240030
ActiveCrouzet
SWITCH SNAP ACTION DPST 6A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
83240030
ActiveCrouzet
SWITCH SNAP ACTION DPST 6A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 83240030 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 600 mA, 6 A |
| Differential Travel | 1 mm |
| Differential Travel | 0.04 in |
| Ingress Protection | IP40 |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 459 gf |
| Operating Position | 6.6 mm |
| Operating Position | 0.26 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -50 °C |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 53.62 | |
Description
General part information
832400 Series
Switch DPST-NO/NC Chassis Mount
