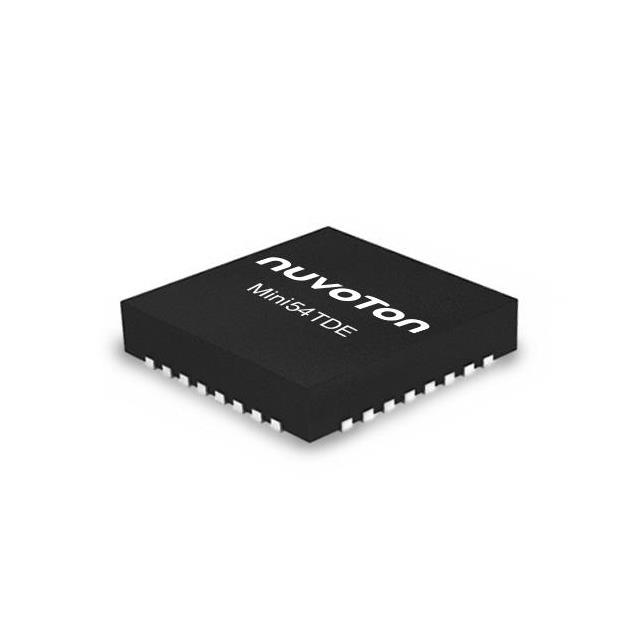

MINI54TDE

Active

Nuvoton Technology Corporation

IC MCU 32BIT 16KB FLASH 33QFN

Search across all available documentation for this part.

Active

Nuvoton Technology Corporation

IC MCU 32BIT 16KB FLASH 33QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MINI54TDE

Connectivity	IrDA, UART/USART, I2C, SPI
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit Single-Core
Data Converters [custom]	8
Data Converters [custom]	10
Mounting Type	Surface Mount
Number of I/O	29
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Peripherals	PWM, LVD, WDT, Brown-out Detect/Reset, POR
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	2K x 8
Speed	24 MHz
Supplier Device Package	33-QFN (4x4)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.5 V

Part	Data Converters [custom]	Data Converters [custom]	Oscillator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	RAM Size	Number of I/O	Core Size	Speed	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Connectivity	Peripherals	Supplier Device Package	Program Memory Type
Nuvoton Technology Corporation MINI54TDE	8	10	Internal	Surface Mount	105 °C	-40 °C	ARM® Cortex®-M0	2K x 8	29	32-Bit Single-Core	24 MHz	2.5 V	5.5 V	16 KB	I2C IrDA SPI UART/USART	Brown-out Detect/Reset LVD POR PWM WDT	33-QFN (4x4)	FLASH
Nuvoton Technology Corporation MINI54ZAN	8	10	Internal	Surface Mount	85 °C	-40 °C	ARM® Cortex®-M0	2K x 8	29	32-Bit Single-Core	24 MHz	2.5 V	5.5 V	16 KB	I2C IrDA SPI UART/USART			FLASH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	490	$ 1.43

General part information

ARM® Cortex®-M0 NuMicro Mini51™ DE Microcontroller IC 32-Bit Single-Core 24MHz 16KB (16K x 8) FLASH 33-QFN (4x4)
