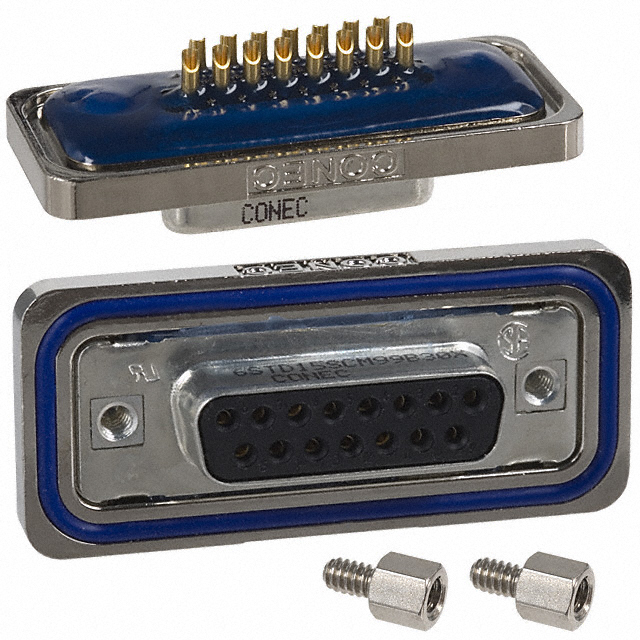

6STD15SCM99B30X

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6STD15SCM99B30X

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6STD15SCM99B30X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Tin Plated, Copper Alloy
Shell Size, Connector Layout	2
Wire Gauge	20 AWG

6STD15S Series

Part	Connector Type	Flange Feature	Material Flammability Rating	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Contact Type	Contact Material	Backset Spacing	Backset Spacing	Dielectric Material	Shell Material, Finish	Mounting Type	Termination	Shell Size, Connector Layout	Current Rating (Amps)	Connector Style	Ingress Protection	Contact Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage Rating	Contact Finish Thickness
Amphenol CONEC 6STD15SCT99S40X	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	Black	0.76 Ám	30 Áin	2	Board Lock Mounting Brackets	Signal	Copper Alloy	4.8 mm	0.189 in	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy Tin Plated	Panel Mount Right Angle Through Hole	Solder	2	5 A	D-Sub	IP67 - Dust Tight Waterproof	Gold	15	-25 °C	105 ░C
Amphenol CONEC 6STD15SCM99B30X	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	Black	0.76 Ám	30 Áin	2		Signal	Copper Alloy			Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy Tin Plated			2	5 A	D-Sub	IP67 - Dust Tight Waterproof	Gold	15	-40 °C	105 ░C	20 AWG
Amphenol CONEC 6STD15SAT99S10X	Receptacle Female Sockets		UL94 V-0	Black			2	Mounting Brackets	Signal	Copper Alloy	4.8 mm	0.189 in	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy Tin Plated	Board Edge Right Angle Through Hole	Solder	2	7.5 A	D-Sub	IP67 - Dust Tight Waterproof	Gold	15	-25 °C	105 ░C		125 VDC
Amphenol CONEC 6STD15SAZ99S40X	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	Black			2	Board Lock Mounting Brackets	Signal	Copper Alloy	11.8 mm	0.465 in	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy Tin Plated	Board Edge Right Angle Through Hole	Solder	2		D-Sub	IP67 - Dust Tight Waterproof	Gold	15					Flash
Amphenol CONEC 6STD15SAT99S40X	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	UL94 V-0	Black			2	Board Lock Mounting Brackets	Signal	Copper Alloy	4.8 mm	0.189 in	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy Tin Plated	Board Edge Right Angle Through Hole	Solder	2	7.5 A	D-Sub	IP67 - Dust Tight Waterproof	Gold	15	-25 °C	105 ░C		125 VDC	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 32.61
		10	$ 28.55
		25	$ 27.32
		50	$ 26.44
		100	$ 25.56
		250	$ 24.15

Description

General part information

6STD15S Series

15 Position D-Sub Receptacle, Female Sockets Connector
