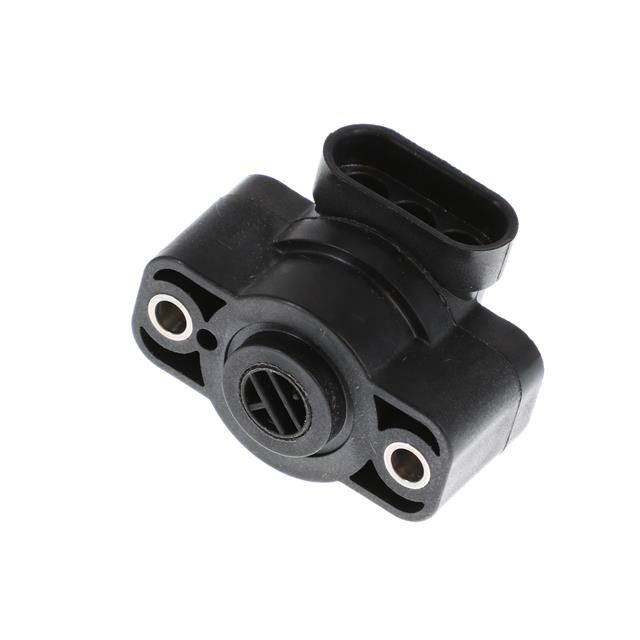

9960-090-C-5C-SW

Active

Sensata-BEI Sensors

SENSOR ROTARY 90DEG CBL W/CONN

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

SENSOR ROTARY 90DEG CBL W/CONN

Technical Specifications

Parameters and characteristics for this part

Specification	9960-090-C-5C-SW

Actuator Type	Hole for Shaft
For Measuring	Rotary Position
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Output Signal	Programmable
Package / Case	Box with Connector
Resistance	10000 Ohms
Rotation Angle - Electrical, Mechanical [Max]	90 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Hall Effect
Termination Style	Cable with Connector

Part	Technology	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Output	For Measuring	Mounting Type	Termination Style	Resistance	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Signal	Package / Case
Sensata-BEI Sensors 9960-090-C-5C-SW	Hall Effect	0 °	90 °	Analog Voltage	Rotary Position	Chassis Mount	Cable with Connector	10000 Ohms	Hole for Shaft	125 °C	-40 °C	Programmable	Box with Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Rotary Position Hole for Shaft Cable with Connector

Technical documentation and resources

No documents available
