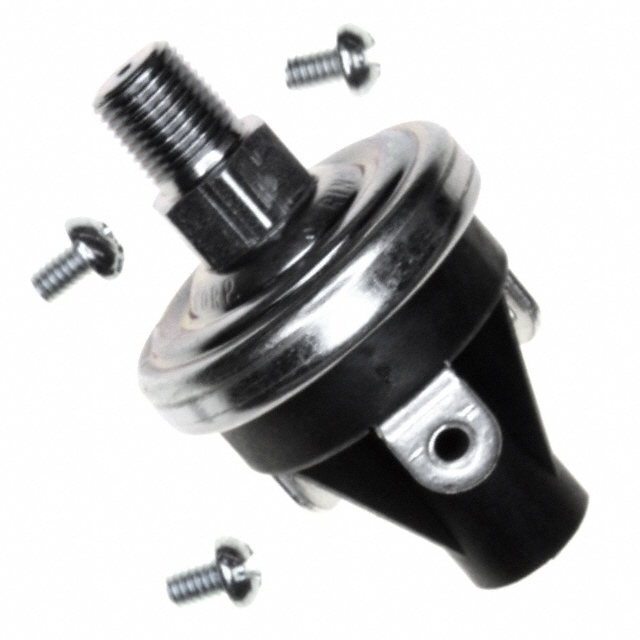

76074-00000600-01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH PRESSURE D.C. 60PSI
Deep-Dive with AI
Search across all available documentation for this part.
76074-00000600-01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH PRESSURE D.C. 60PSI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76074-00000600-01 |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure [Max] | 500 PSI |
| Maximum Pressure [Max] | 3447.38 kPa |
| Operating Pressure | 60 PSI |
| Operating Pressure | 413.69 kPa |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SPDT |
| Package / Case | Cylinder |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Screw Terminal |
76074 Series
| Part | Port Style | Output Type | Port Size | Port Size | Port Size | Termination Style | Package / Case | Operating Pressure [Min] | Operating Pressure [Max] | Operating Pressure [Max] | Operating Pressure [Min] | Pressure Type | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Pressure [Max] | Maximum Pressure [Max] | Operating Pressure | Operating Pressure | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | Threaded | SPST-NC (1) NO (1) | 0.125 " | 3.18 mm | Male | Screw Terminal | Cylinder Threaded | 351.63 kPa | 90 PSI | 620.53 kPa | 51 PSI | Switch | -40 °C | 121 °C | 500 PSI | 3447.38 kPa | |||
Honeywell Sensing and Productivity Solutions | Threaded | SPST-NC (1) NO (1) | 0.125 " | 3.18 mm | Male | Screw Terminal | Cylinder Threaded | 351.63 kPa | 90 PSI | 620.53 kPa | 51 PSI | Switch | -40 °C | 121 °C | 500 PSI | 3447.38 kPa | |||
Honeywell Sensing and Productivity Solutions | Threaded | SPDT | 0.125 " | 3.18 mm | Male | Screw Terminal | Cylinder | Switch | -40 °C | 121 °C | 500 PSI | 3447.38 kPa | 60 PSI | 413.69 kPa | Industrial Automation | ||||
Honeywell Sensing and Productivity Solutions | Threaded | SPST-NC (1) NO (1) | 0.125 " | 3.18 mm | Male | Screw Terminal | Cylinder Threaded | 351.63 kPa | 90 PSI | 620.53 kPa | 51 PSI | Switch | -40 °C | 121 °C | 500 PSI | 3447.38 kPa | |||
Honeywell Sensing and Productivity Solutions | Threaded | SPST-NC (1) NO (1) | 0.125 " | 3.18 mm | Male | Screw Terminal | Cylinder Threaded | 351.63 kPa | 90 PSI | 620.53 kPa | 51 PSI | Switch | -40 °C | 121 °C | 500 PSI | 3447.38 kPa | |||
Honeywell Sensing and Productivity Solutions | Threaded | SPST-NC (1) NO (1) | 0.125 " | 3.18 mm | Male | Screw Terminal | Cylinder Threaded | 351.63 kPa | 90 PSI | 620.53 kPa | 51 PSI | Switch | -40 °C | 121 °C | 500 PSI | 3447.38 kPa | |||
Honeywell Sensing and Productivity Solutions | Threaded | SPST-NC (1) NO (1) | 0.125 " | 3.18 mm | Male | Screw Terminal | Cylinder Threaded | 351.63 kPa | 90 PSI | 620.53 kPa | 51 PSI | Switch | -40 °C | 121 °C | 500 PSI | 3447.38 kPa |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 83.10 | |
| 5 | $ 70.09 | |||
| 10 | $ 65.14 | |||
| 25 | $ 59.13 | |||
| 50 | $ 57.23 | |||
Description
General part information
76074 Series
SWITCH PRESSURE D.C. 60PSI
