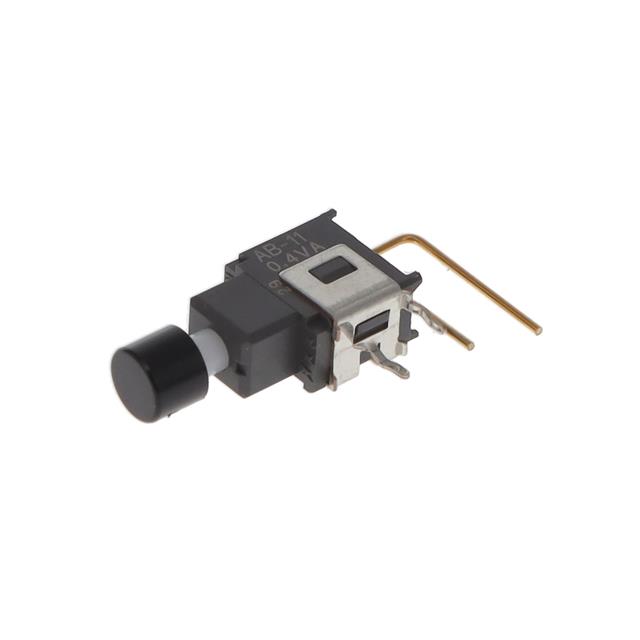

AB11AV-FA

Active

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	AB11AV-FA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Sealed - Fully
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Switch Function	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Type	Actuator Marking	Electrical Life	Termination Style	Voltage Rating - AC	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Voltage Rating - DC	Type
NKK Switches AB11AV1-HA	Off-Mom	Sealed - Fully	-30 ░C	85 °C	Right Angle Through Hole Vertical	Button Round	No Marking	50000 Cycles	PC Pin	28 V	Black	SPST-NO	0.4 VA	28 V	Standard
NKK Switches AB11AV-FA	Off-Mom	Sealed - Fully	-30 ░C	85 °C	Right Angle Through Hole Vertical	Button Round	No Marking	50000 Cycles	PC Pin	28 V	Black	SPST-NO	0.4 VA	28 V	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole, Right Angle, Vertical
