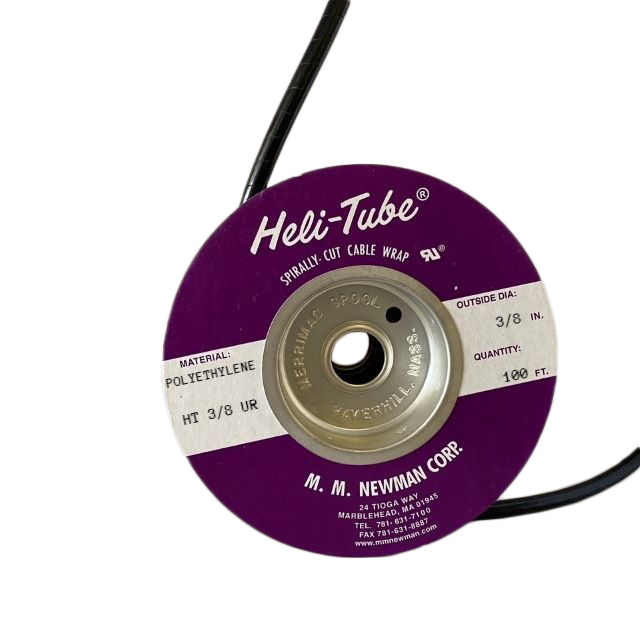

HT 3/8 UR

Active

MM Newman Corporation

SPIRAL WRAP 0.271" X 100' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 3/8 UR

Active

MM Newman Corporation

SPIRAL WRAP 0.271" X 100' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT 3/8 UR

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Expanded	76.2 mm
Diameter - Inside, Expanded [diameter]	3 in
Diameter - Inside, Non-Expanded [diameter]	0.271 in
Diameter - Inside, Non-Expanded [diameter]	6.88 mm
Diameter - Outside, Non-Expanded [diameter]	0.375 "
Diameter - Outside, Non-Expanded [diameter]	9.52 mm
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	1.32 mm
Wall Thickness [custom]	0.052 in

HT 3/8 Series

Part	Material	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Type	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Length	Length	Abrasion Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Expanded	Diameter - Inside, Expanded [diameter]	Heat Protection	Material Flammability Rating	Environment Protection	Diameter - Inside, Expanded [diameter]
MM Newman Corporation HT 3/8 UR	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Black	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 C	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Natural	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 C YE DG	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Yellow	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 R	Polyethylene (PE)	Harness	0.271 in	6.88 mm	White	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant Solvent Resistant	-20 C	80 C	76.2 mm	3 in	Fire Resistant	UL94 V-2 UL1441
MM Newman Corporation HT 3/8 C RE	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Red	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 N-B	Nylon	Harness	0.305 in	7.75 mm	Black	Spiral Wrap	0.89 mm	0.035 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant Self Extinguishing Solvent Resistant	-40 °C	121 °C	76.2 mm	3 in			UV Resistant
MM Newman Corporation HT 3/8 T	Polytetrafluoroethylene (PTFE)	Harness	0.312 in	7.92 mm	Natural	Spiral Wrap	0.76 mm	0.03 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant Solvent Resistant	-268 °C	260 ░C		2.5 "	Fire Resistant	UL VW-1 UL94 V-0	UV Resistant	63.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HT 3/8 Series

Spiral Wrap 0.375" (9.52mm) X 100' (30.48m) Black
