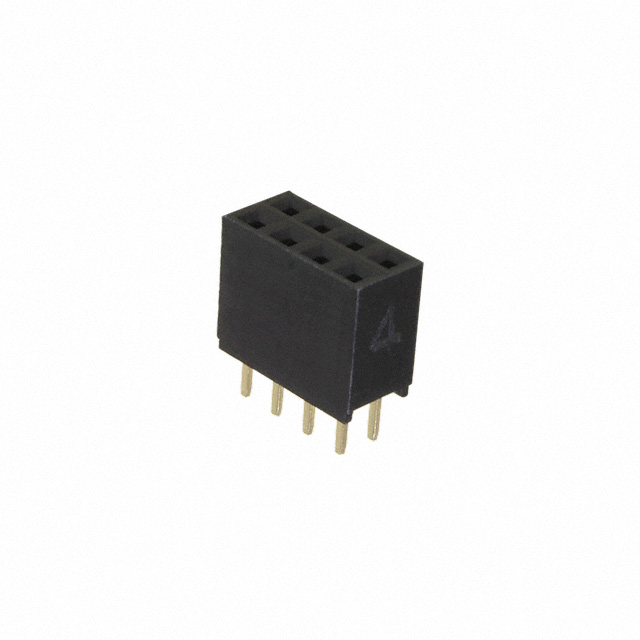

RS2-08-G

Active

Adam Tech

RECEPTACLE STRIP 8P 2.54MM PITCH

Search across all available documentation for this part.

Active

Adam Tech

RECEPTACLE STRIP 8P 2.54MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	RS2-08-G

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VAC

Part	Insulation Color	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Contact Finish Thickness - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Connector Type	Number of Positions	Termination	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Contact Material	Insulation Material	Contact Shape	Contact Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish - Mating
Adam Tech RS2-08-G	Black	Through Hole	All	3 A	Flash	Push-Pull	-40 °C	105 ░C	0.118 in	3 mm	UL94 V-0	Receptacle	8	Solder	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	0.335 "	8.51 mm	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Square	Forked	250 VAC	Flash	Gold
