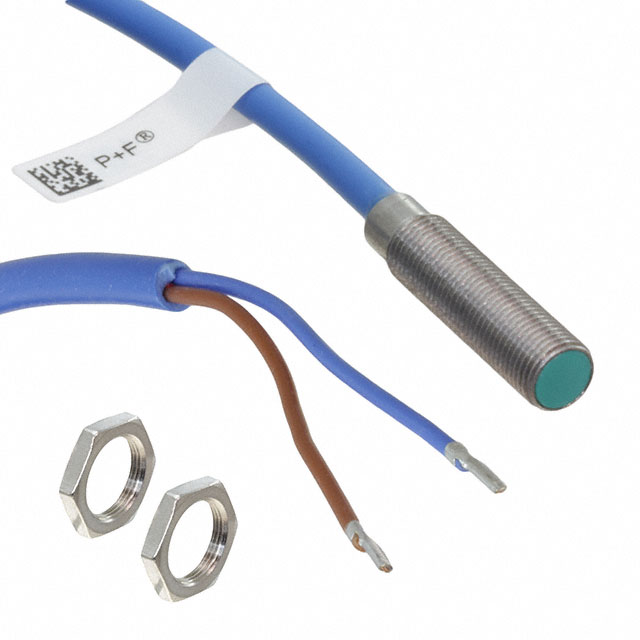

NJ1.5-8GM-N

Active

PEPPERL+FUCHS

INDUCTIVE SEN 1.5MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 1.5MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NJ1.5-8GM-N

Indicator [custom]	No Indicator
Ingress Protection	IP67, IP66
Material - Body	Stainless Steel
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Cylinder, Threaded - M8
Sensing Distance	1.5 mm
Sensing Distance	0.059 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply	8.2 V

Part	Operating Temperature [custom]	Sensor Type	Ingress Protection	Indicator [custom]	Material - Body	Package / Case	Sensing Distance	Sensing Distance	Shielding	Voltage - Supply	Output Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type
PEPPERL+FUCHS NJ1.5-8GM-N	-25 °C 100 °C	Inductive	IP66 IP67	No Indicator	Stainless Steel	Cylinder Threaded - M8	1.5 mm	0.059 "	Unshielded	8.2 V	SCR-NC 2-Wire	Cable
PEPPERL+FUCHS NJ1.5-18GM-N-D-V1		Inductive	IP67	No Indicator	Stainless Steel	Cylinder Threaded - M18	1.5 mm	0.059 "	Unshielded	8.2 V	SCR-NC 2-Wire	Connector	-25 °C	85 °C
PEPPERL+FUCHS NJ1.5-PD-US-1.250-V93		Inductive	IP67	LED	Zinc Die-Cast	Module	1.5 mm	0.059 "	Unshielded		SCR-NO 3-Wire	Connector	-25 °C	70 °C	250 V	20 VDC
PEPPERL+FUCHS NJ1.5-PD-E02-1.250-V95		Inductive	IP67	LED	Zinc Die-Cast	Module	1.5 mm	0.059 "	Unshielded		NPN/PNP-NO	Connector	-25 °C	70 °C	30 VDC	10 VDC	4 Pole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 1.5MM NAMUR
