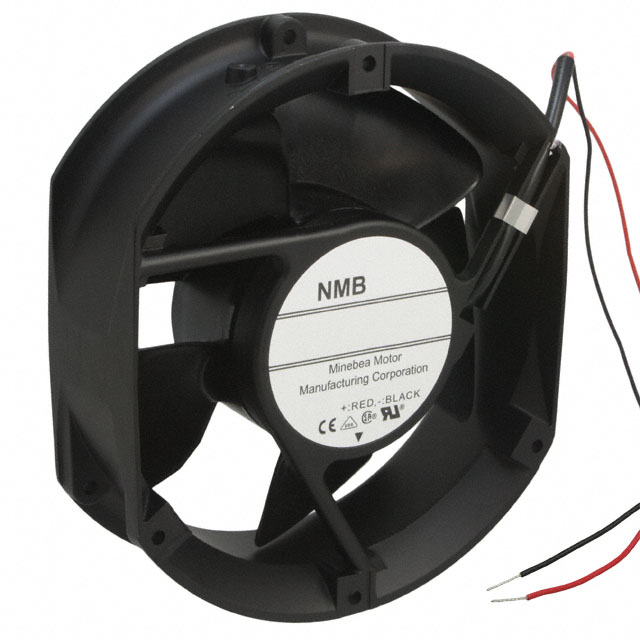

5920PL-04W-B30-D00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 172X50.8MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Agency Approvals Fans & Blowers Catalog +1

5920PL-04W-B30-D00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 172X50.8MM 12VDC WIRE

Deep-Dive with AI

DocumentsFan Agency Approvals Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5920PL-04W-B30-D00

Air Flow	225 CFM
Air Flow	6.3 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	13.8 W
RPM	3150 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.562 in H2O
Static Pressure	140 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	18 VDC
Voltage Range [Min]	6 VDC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	2 "

5920PL Series

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Noise	Weight	Weight	Static Pressure	Static Pressure	Approval Agency	Bearing Type	Air Flow	Air Flow	Fan Type	Termination	RPM	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Material - Blade	Power (Watts)	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Features	Current Rating (Amps)	Voltage - Rated [custom]
NMB TECHNOLOGIES 5920PL-04W-B30-D00	70 °C	70 °C	-10 °C	-10 °C	2 "	55 dB	816.5 g	1.8 lbs	0.562 in H2O	140 Pa	CE CSA UL VDE	Ball	225 CFM	6.3 m³/min	Tubeaxial	2 Wire Leads	3150 RPM	Rectangular/Rounded	150 mm	172 mm	12 VDC	Plastic	13.8 W	Aluminum	18 VDC	6 VDC
NMB TECHNOLOGIES 5920PL-04W-B39-D50	70 °C	70 °C	-10 °C	-10 °C	2 "	55 dB	816.5 g	1.8 lbs	0.562 in H2O	140 Pa	CE CSA UL VDE	Ball	225 CFM	6.3 m³/min	Tubeaxial	3 Wire Leads	3150 RPM	Rectangular/Rounded	150 mm	172 mm	12 VDC	Plastic	13.8 W	Aluminum	18 VDC	6 VDC	Speed Sensor (Tach)
NMB TECHNOLOGIES 5920PL-05W-B39-D00	70 °C	70 °C	-10 °C	-10 °C	2 "	55 dB	816.5 g	1.8 lbs	0.562 in H2O	140 Pa	CE CSA UL VDE	Ball	225 CFM	6.3 m³/min	Tubeaxial	3 Wire Leads	3150 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	Plastic	13.2 W	Aluminum	30 V	12 VDC	Locked Rotor Sensor	0.55 A
NMB TECHNOLOGIES 5920PL-05W-B40-D00	70 °C	70 °C	-10 °C	-10 °C	2 "	58 dB(A)	816.5 g	1.8 lbs	0.622 in H2O	155 Pa	CE CSA UL VDE	Ball	240 CFM	6.72 mł/min	Tubeaxial	2 Wire Leads	3350 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	Plastic	15.8 W	Aluminum	30 V	12 VDC		660 mA
NMB TECHNOLOGIES 5920PL-05W-B60-D00	70 °C	70 °C	-10 °C	-10 °C	2 "	62.5 dB	816.5 g	1.8 lbs	0.84 in H2O	209.2 Pa	CE CSA UL VDE	Ball	280 CFM	7.84 m³/min	Tubeaxial	2 Wire Leads	3750 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	Plastic	21.1 W	Aluminum	30 V	12 VDC		880 mA
NMB TECHNOLOGIES 5920PL-05W-B10-D00	70 °C	70 °C	-10 °C	-10 °C	2 "	50 dB(A)	816.5 g	1.8 lbs	0.371 in H2O	92.5 Pa	CE CSA UL VDE	Ball	180 CFM	5.04 mł/min	Tubeaxial	2 Wire Leads	2550 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	Plastic	8.64 W	Aluminum	30 V	12 VDC		360 mA
NMB TECHNOLOGIES 5920PL-05W-B20-D00	70 °C	70 °C	-10 °C	-10 °C	2 "	53 dB	816.5 g	1.8 lbs	0.371 in H2O	92.5 Pa	CE CSA UL VDE	Ball	200 CFM	5.6 mł/min	Tubeaxial	2 Wire Leads	2850 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	Plastic	11 W	Aluminum	30 V	12 VDC		460 mA
NMB TECHNOLOGIES 5920PL-07W-B49-D50	70 °C	70 °C	-10 °C	-10 °C	2 "	58 dB(A)	816.5 g	1.8 lbs	0.622 in H2O	155 Pa	CE CSA UL VDE	Ball	240 CFM	6.72 mł/min	Tubeaxial	3 Wire Leads	3350 RPM	Rectangular/Rounded	150 mm	172 mm		Plastic	15.8 W	Aluminum	60 V	25 VDC	Speed Sensor (Tach)	0.33 A	48 VDC
NMB TECHNOLOGIES 5920PL-07W-B79-D50	70 °C	70 °C	-10 °C	-10 °C	2 "	63.2 dB	816.5 g	1.8 lbs	0.909 in H2O	226.5 Pa	CE CSA UL VDE	Ball	300 CFM	8.4 mł/min	Tubeaxial	3 Wire Leads	4000 RPM	Rectangular/Rounded	150 mm	172 mm		Plastic	24.5 W	Aluminum	60 V	25 VDC	Speed Sensor (Tach)	0.51 A	48 VDC
NMB TECHNOLOGIES 5920PL-05W-B49-D50	70 °C	70 °C	-10 °C	-10 °C	2 "	58 dB(A)	816.5 g	1.8 lbs	0.622 in H2O	155 Pa	CE CSA UL VDE	Ball	240 CFM	6.72 mł/min	Tubeaxial	3 Wire Leads	3350 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	Plastic	15.8 W	Aluminum	30 V	12 VDC	Speed Sensor (Tach)	660 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5920PL Series

Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 150mm H Ball 225.0 CFM (6.30m³/min) 2 Wire Leads
