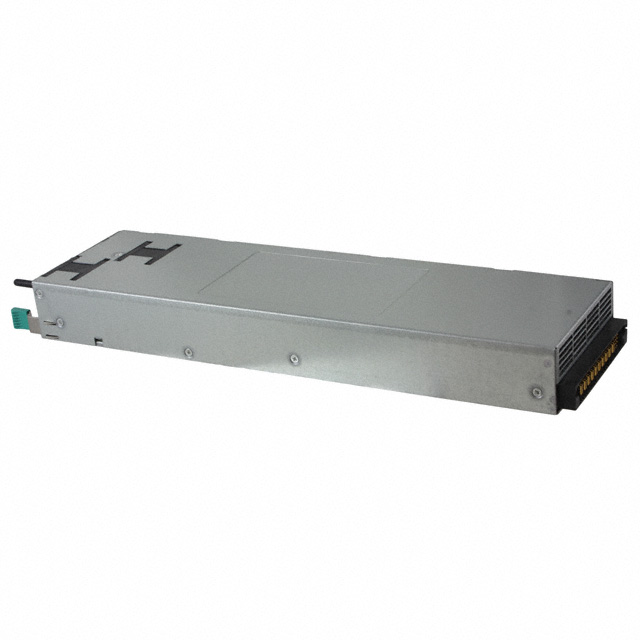

D1U4CS-W-2200-12-HC3C

NRND

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 3.3V 830W

Search across all available documentation for this part.

NRND

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 3.3V 830W

Technical Specifications

Parameters and characteristics for this part

Specification	D1U4CS-W-2200-12-HC3C

Applications	ITE (Commercial)
Approval Agency	CB, TUV, CE, cCSAus
Current - Output 1	180 A
Current - Output 2	5 A
Efficiency	93 %
Features	PMBus™, Universal Input, Load Sharing, I2C Interface, Hot Swappable, Standby Output, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	830 W
Size / Dimension [x]	279.4 mm
Size / Dimension [x]	11 in
Size / Dimension [y]	81.3 mm
Size / Dimension [y]	3.2 in
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.9 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC, 140 VAC
Voltage - Input [Min]	180 VAC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	3.3 V

Part	Voltage - Output 1	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Type	Approval Agency	Features	Efficiency	Voltage - Output 2	Number of Outputs	Mounting Type	Power (Watts)	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Current - Output 2
Murata Power Solutions Inc. D1U4CS-W-2200-12-HC3C	12 V	180 A	140 VAC 264 VAC	90 VAC 180 VAC	Enclosed	CB cCSAus CE TUV	Adjustable Output Hot Swappable I2C Interface Load Sharing PMBus™ Standby Output Universal Input	93 %	3.3 V	2	Chassis Mount	830 W	ITE (Commercial)	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in	3000 V	55 °C	-10 °C	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 666.90

General part information

Enclosed AC DC Converters 2 Output 12V 3.3V 90 ~ 140 VAC, 180 ~ 264 VAC Input
