09400480311

Active

HARTING Technology Group

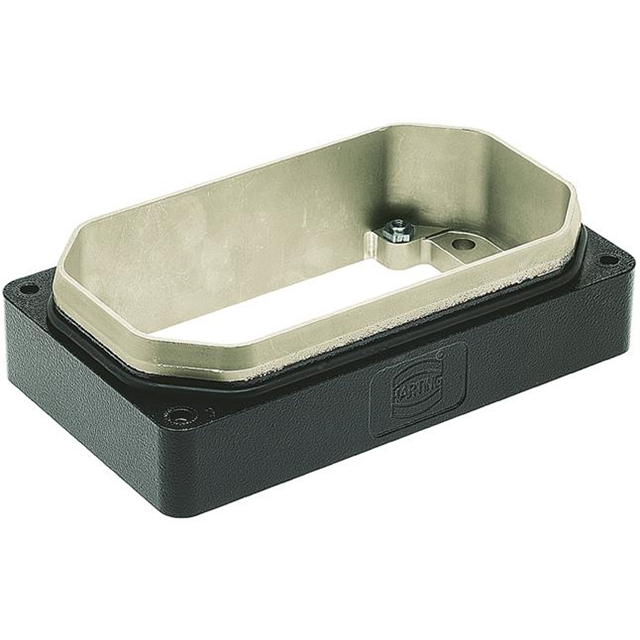

HAN 48 HPR BASE PANEL ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 48 HPR BASE PANEL ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Lock Location	Housing Finish	Housing Color	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Style
HARTING Technology Group 09400480311	Base - Panel Mount	Screw Locks on Hood	Powder Coated	Black	2.047 in	52 mm	112 mm	7.559 in	192 mm	4.409 "	48 B	125 °C	-40 °C	Aluminum Die Cast	Bottom Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 48B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
