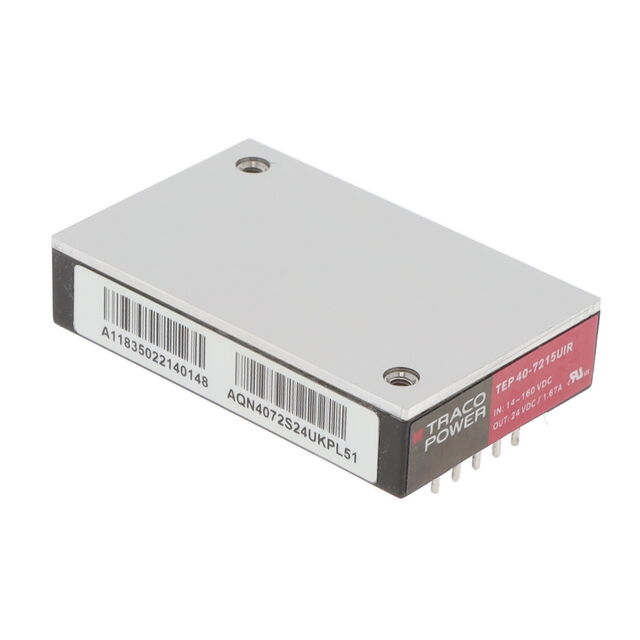

TEP 40-7215UIR

Active

Traco Power

DC DC CONVERTER 24V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEP 40-7215UIR

Active

Traco Power

DC DC CONVERTER 24V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEP 40-7215UIR

Applications	Railway, ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max) [Max]	1.67 A
Efficiency	90 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	40 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	14 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

TEP 40 Series

Part	Voltage - Isolation	Package / Case	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Number of Outputs	Efficiency	Voltage - Output 1	Approval Agency	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
Traco Power TEP 40-7215UIR	3000 V	Quarter Brick	Isolated Module	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Adjustable Output Remote On/Off	1.67 A	Through Hole	85 °C	-40 °C	ITE (Commercial) Railway	40 W	1	90 %	24 V	CB cURus	Quarter Brick	160 V	14 V
Traco Power TEP 40-7211UIR	3000 V	Quarter Brick	Isolated Module	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Adjustable Output Remote On/Off	8 A	Through Hole	85 °C	-40 °C	ITE (Commercial) Railway	40 W	1	89 %	5 V	CB cURus	Quarter Brick	160 V	14 V
Traco Power TEP 40-7218UIR	3000 V	Quarter Brick	Isolated Module	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Adjustable Output Remote On/Off	830 mA	Through Hole	85 °C	-40 °C	ITE (Commercial) Railway	40 W	1	90 %	48 V	CB cURus	Quarter Brick	160 V	14 V
Traco Power TEP 40-7212UIR	3000 V	Quarter Brick	Isolated Module	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Adjustable Output Remote On/Off	3.33 A	Through Hole	85 °C	-40 °C	ITE (Commercial) Railway	40 W	1	91 %	12 V	CB cURus	Quarter Brick	160 V	14 V
Traco Power TEP 40-3613UIR	2250 VDC	Quarter Brick	Isolated Module	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Adjustable Output Remote On/Off	2.67 A	Through Hole	85 °C	-40 °C	ITE (Commercial) Railway	40 W	1	91 %	15 V	CB cURus	Quarter Brick	75 V	9 V
Traco Power TEP 40-3615UIR	2250 VDC	Quarter Brick	Isolated Module	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Adjustable Output Remote On/Off	1.67 A	Through Hole	85 °C	-40 °C	ITE (Commercial) Railway	40 W	1	90 %	24 V	CB cURus	Quarter Brick	75 V	9 V
Traco Power TEP 40-3618UIR	2250 VDC	Quarter Brick	Isolated Module	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	Adjustable Output Remote On/Off	830 mA	Through Hole	85 °C	-40 °C	ITE (Commercial) Railway	40 W	1	90 %	48 V	CB cURus	Quarter Brick	75 V	9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 122.07
		10	$ 112.19
		25	$ 108.49
		50	$ 105.77
		100	$ 92.81

Description

General part information

TEP 40 Series

Isolated Module DC DC Converter 1 Output 24V 1.67A 14V - 160V Input
