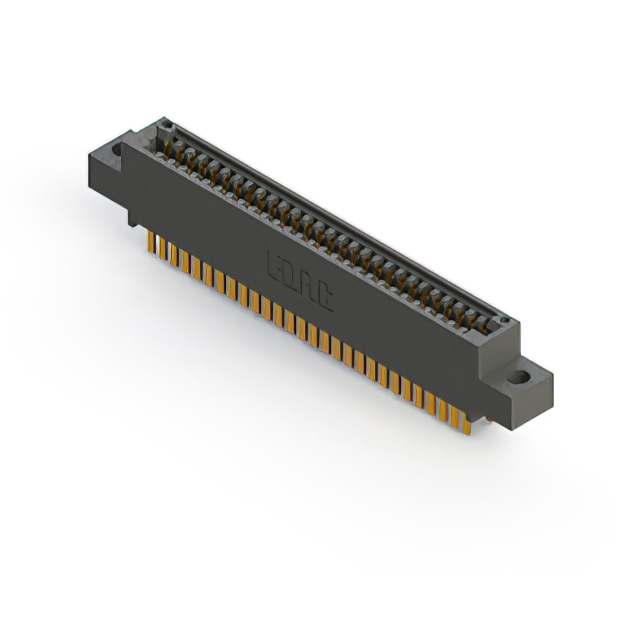

895-056-544-504

Active

EDAC Inc.

CONN EDGE DUAL FMALE 56POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-056-544-504

Active

EDAC Inc.

CONN EDGE DUAL FMALE 56POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-056-544-504

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	56
Number of Positions/Bay/Row [custom]	28
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

895-056 Series

...

Part	Gender	Number of Rows	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Number of Positions/Bay/Row [custom]	Card Type	Termination	Contact Finish	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Color	Material - Insulation	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Flange Feature	Pitch [x]	Pitch [x]	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 895-056-520-812	Female	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	28	Non Specified - Dual Edge	Solder	Gold	Dual	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	2	10 Áin	0.25 Ám	Side Mount Opening Unthreaded	3.25 mm	0.128 in	2.54 mm	0.1 in	Through Hole
EDAC Inc. 895-056-544-612	Female	1	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	56	Non Specified - Single Edge	Wire Wrap	Gold	Single	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	1	10 Áin	0.25 Ám	Side Mount Opening Unthreaded	3.25 mm	0.128 in	2.54 mm	0.1 in	Through Hole
EDAC Inc. 895-056-523-812	Female	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	28	Non Specified - Dual Edge	Solder	Gold	Dual	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	2	10 Áin	0.25 Ám	Side Mount Opening Unthreaded	3.25 mm	0.128 in	2.54 mm	0.1 in	Through Hole
EDAC Inc. 895-056-520-602	Female	1	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	56	Non Specified - Single Edge	Solder	Gold	Single	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	1	10 Áin	0.25 Ám		3.25 mm	0.128 in	2.54 mm	0.1 in	Through Hole
EDAC Inc. 895-056-560-803	Female	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	28	Non Specified - Dual Edge	Solder	Gold	Dual	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	2	10 Áin	0.25 Ám	Floating Bobbin Top Mount Opening			2.54 mm	0.1 in	Board Edge Straddle Mount	2.95 mm	0.116 in	Card Extender
EDAC Inc. 895-056-560-212	Female	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	28	Non Specified - Dual Edge	Solder	Gold	Dual	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	2	10 Áin	0.25 Ám	Flush Mount Side Opening Unthreaded			2.54 mm	0.1 in	Board Edge Straddle Mount	3.25 mm	0.128 "	Card Extender
EDAC Inc. 895-056-523-404	Female	1	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	56	Non Specified - Single Edge	Solder	Gold	Single	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	1	10 Áin	0.25 Ám	Top Mount Opening Unthreaded			2.54 mm	0.1 in	Through Hole	3.96 mm	0.156 in
EDAC Inc. 895-056-523-508	Female	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	28	Non Specified - Dual Edge	Solder	Gold	Dual	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	2	10 Áin	0.25 Ám	4-40 Threaded Insert Top Mount Opening			2.54 mm	0.1 in	Through Hole
EDAC Inc. 895-056-544-504	Female	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	28	Non Specified - Dual Edge	Wire Wrap	Gold	Dual	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	2	10 Áin	0.25 Ám	Top Mount Opening Unthreaded			2.54 mm	0.1 in	Through Hole	3.96 mm	0.156 in
EDAC Inc. 895-056-542-504	Female	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	56	28	Non Specified - Dual Edge	Wire Wrap	Gold	Dual	125 °C	-40 °C	Cantilever	Black	Polyphenylene Sulfide (PPS)	2	10 Áin	0.25 Ám	Top Mount Opening Unthreaded			2.54 mm	0.1 in	Through Hole	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 67.61

Description

General part information

895-056 Series

56 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
