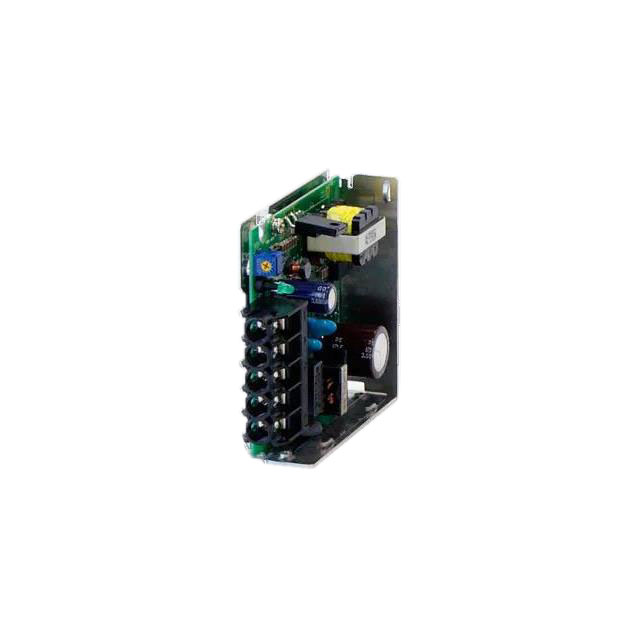

HWS15A-3

Active

TDK-LAMBDA

AC/DC CONVERTER 3.3V 15W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 3.3V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	HWS15A-3

Applications	Industrial, ITE (Commercial)
Approval Agency	CE
Current - Output 1	3 A
Efficiency	68 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	15 W
Size / Dimension [x]	3.15 in
Size / Dimension [x]	80 mm
Size / Dimension [y]	1.24 in
Size / Dimension [y]	31.5 mm
Size / Dimension [z]	82 mm
Size / Dimension [z]	3.23 in
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

Part	Efficiency	Applications	Power (Watts)	Features	Approval Agency	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Number of Outputs	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation
TDK-LAMBDA HWS15A-3	68 %	Industrial ITE (Commercial)	15 W	Adjustable Output Universal Input	CE	Chassis Mount	1.24 in	82 mm	3.15 in	80 mm	31.5 mm	3.23 in	3 A	1	Open Frame	3.3 V	-10 °C	70 °C	85 VAC 120 VDC	264 VAC 370 VDC	3000 V
TDK-LAMBDA HWS15A-15/A	80 %	Industrial ITE (Commercial)	15 W	Adjustable Output Universal Input	CE	Chassis Mount	1.24 in	82 mm	3.15 in	80 mm	31.5 mm	3.23 in	1 A	1	Enclosed	15 V	-10 °C	70 °C	85 VAC 120 VDC	264 VAC 370 VDC	3000 V
TDK-LAMBDA HWS15A-15	80 %	Industrial ITE (Commercial)	15 W	Adjustable Output Universal Input	CE	Chassis Mount	1.24 in	82 mm	3.15 in	80 mm	31.5 mm	3.23 in	1 A	1	Open Frame	15 V	-10 °C	70 °C	85 VAC 120 VDC	264 VAC 370 VDC	3000 V
TDK-LAMBDA HWS15A-5/A	77 %	Industrial ITE (Commercial)	15 W	Adjustable Output Universal Input	CE	Chassis Mount	1.24 in	82 mm	3.15 in	80 mm	31.5 mm	3.23 in	3 A	1	Enclosed	5 V	-10 °C	70 °C	85 VAC 120 VDC	264 VAC 370 VDC	3000 V
TDK-LAMBDA HWS15A-12/A	81 %	Industrial ITE (Commercial)	15 W	Adjustable Output Universal Input	CE	Chassis Mount	1.24 in	82 mm	3.15 in	80 mm	31.5 mm	3.23 in	1.3 A	1	Enclosed	12 V	-10 °C	70 °C	85 VAC 120 VDC	264 VAC 370 VDC	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 3.3V 85 ~ 264 VAC, 120 ~ 370 VDC Input
