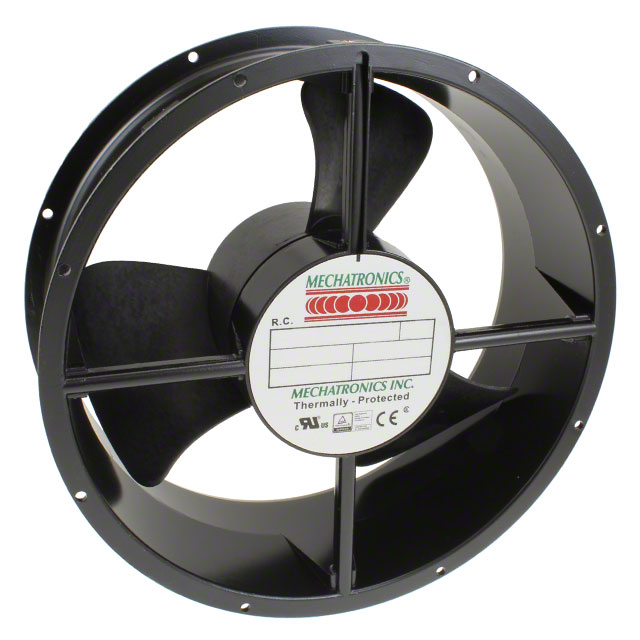

UF25GC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 254X89MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
UF25GC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 254X89MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF25GC12-BTHR |
|---|---|
| Air Flow | 15.4 mł/min |
| Air Flow | 550 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.29 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 55 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 33 W |
| RPM | 1650 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 10 in |
| Static Pressure | 0.4 in H2O |
| Static Pressure | 99.6 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 1.9 kg |
| Weight | 4.1 lbs |
| Width [y] | 89 mm |
UF25G Series
| Part | Bearing Type | Air Flow | Air Flow | Material - Blade | Fan Type | Static Pressure | Static Pressure | Weight | Weight | Features | Approval Agency | Noise | Power (Watts) | RPM | Termination | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Voltage - Rated | Current Rating (Amps) | Material - Frame | Width [y] | Size / Dimension [diameter] | Size / Dimension | Ingress Protection | Termination | Current Rating (Amps) [Max] | Current Rating (Amps) [Min] | Voltage - Rated [Max] | Voltage - Rated [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Terminals | 70 °C | 70 °C | -40 °C | -40 °C | 115 VAC | 0.29 A | Aluminum | 89 mm | 10 in | Round | ||||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Wire Leads | 70 °C | 70 °C | -40 °C | -40 °C | 230 VAC | 140 mA | Aluminum | 89 mm | 10 in | Round | IP55 - Dust Protected Water Resistant | |||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Terminals | 70 °C | 70 °C | -40 °C | -40 °C | 230 VAC | 140 mA | Aluminum | 89 mm | 10 in | Round | ||||||
Mechatronics Bearing Group | Ball | 22.74 m³/min | 812 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.82 in H2O | 204.3 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | CE cETL ETL TUV | 65 dB | 98 W | 3200 RPM | 2 Terminals | 70 °C | 70 °C | -40 °C | -40 °C | 230 VAC | 450 mA | Aluminum | 89 mm | 10 in | Round | ||||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Wire Leads | 70 °C | 70 °C | -40 °C | -40 °C | 230 VAC | 140 mA | Aluminum | 89 mm | 10 in | Round | ||||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Wire Leads | 70 °C | 70 °C | -40 °C | -40 °C | 230 VAC | 140 mA | Aluminum | 89 mm | 10 in | Round | IP55 - Dust Protected Water Resistant | |||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 70 °C | 70 °C | -40 °C | -40 °C | 115 VAC | 0.29 A | Aluminum | 89 mm | 10 in | Round | 3 Terminals | ||||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Wire Leads | 70 °C | 70 °C | -40 °C | -40 °C | 115 VAC | 0.29 A | Aluminum | 89 mm | 10 in | Round | IP55 - Dust Protected Water Resistant | |||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Wire Leads | 70 °C | 70 °C | -40 °C | -40 °C | 230 VAC | 140 mA | Aluminum | 89 mm | 10 in | Round | ||||||
Mechatronics Bearing Group | Ball | 15.4 mł/min | 550 CFM | Polybutylene Terephthalate (PBT) | Tubeaxial | 0.4 in H2O | 99.6 Pa | 1.9 kg | 4.1 lbs | Dual Voltage Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | CE cUL TUV UL | 55 dB | 33 W | 1650 RPM | 2 Wire Leads | 70 °C | 70 °C | -40 °C | -40 °C | Aluminum | 89 mm | 10 in | Round | 0.29 A | 0.14 A | 230 VAC | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.28 | |
| 10 | $ 76.25 | |||
| 30 | $ 71.24 | |||
| 50 | $ 70.23 | |||
| 100 | $ 64.71 | |||
Description
General part information
UF25G Series
Fan Tubeaxial 115VAC Round - 254mm Dia Ball 550.0 CFM (15.40m³/min) 2 Terminals
