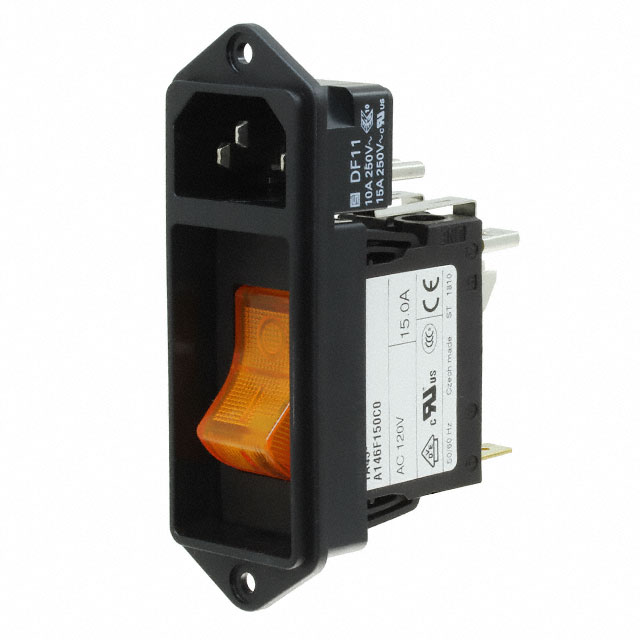

DF11.1698.0010.01
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF11.1698.0010.01 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Circuit Breaker | 15 A |
| Filter Type | Unfiltered - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 29 mm |
| Panel Cutout Dimensions [y] | 73.5 mm |
| Switch Features | Illuminated, Switch On-Off, Circuit Breaker |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.11 | |
| 20 | $ 35.70 | |||
| 40 | $ 34.00 | |||
| 50 | $ 28.42 | |||
| 60 | $ 33.04 | |||
| 100 | $ 31.88 | |||
| 260 | $ 29.80 | |||
Description
General part information
DF11.1698 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
