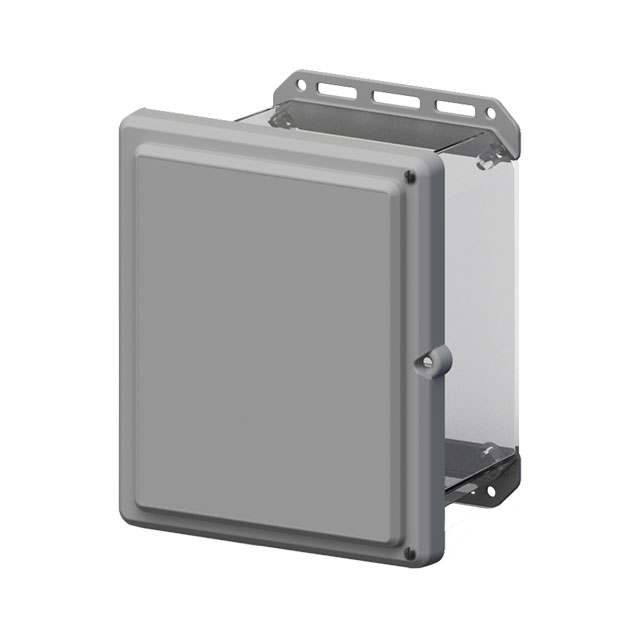

I352HSCG

Active

Serpac

BOX PLSTC CLR/GRY 11.71" X 9.98"

Search across all available documentation for this part.

Active

Serpac

BOX PLSTC CLR/GRY 11.71" X 9.98"

Technical Specifications

Parameters and characteristics for this part

Specification	I352HSCG

Area (L x W) [custom]	117 in²
Area (L x W) [custom]	755 cm²
Color	Clear, Gray Cover/Door
Container Type	Box
Design	Hinged Door, Lid
Features	Mounting Flange, PCB Supports
Height [z]	7.46 in
Height [z]	189.48 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	297.43 mm
Size / Dimension [x]	11.71 in
Size / Dimension [y]	253.49 mm
Size / Dimension [y]	9.98 in
Thickness [x]	8.13 mm
Thickness [x]	0.32 in

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Ratings	Thickness [x]	Thickness [x]	Height [z]	Height [z]	Material Flammability Rating	Material	Color	Design	Area (L x W) [custom]	Area (L x W) [custom]	Features	Area (L x W)	Area (L x W)
Serpac I352HSCG	297.43 mm	253.49 mm	9.98 in	11.71 in	Box	IP67 NEMA 4	8.13 mm	0.32 in	7.46 in	189.48 mm	UL94 V-0	Plastic Polycarbonate	Clear Gray Cover/Door	Hinged Door Lid	117 in²	755 cm²	Mounting Flange PCB Supports
Serpac I352HS,TCBC	297.43 mm	253.49 mm	9.98 in	11.71 in	Box	IP67 NEMA 4	8.13 mm	0.32 in	7.46 in	189.48 mm	UL94 V-0	Plastic Polycarbonate	Clear	Hinged Door Lid	117 in²	755 cm²	Mounting Flange PCB Supports
Serpac I352HSGG	297.43 mm	253.49 mm	9.98 in	11.71 in	Box	IP67 NEMA 4	8.13 mm	0.32 in	7.46 in	189.48 mm	UL94 V-0	Plastic Polycarbonate	Gray	Hinged Door Lid			Mounting Flange PCB Supports	117 in²	755 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.07

General part information

Box Plastic, Polycarbonate Clear, Gray Cover/Door Hinged Door, Lid 11.710" L x 9.980" W (297.43mm x 253.49mm) X 7.460" (189.48mm)

Technical documentation and resources

No documents available
