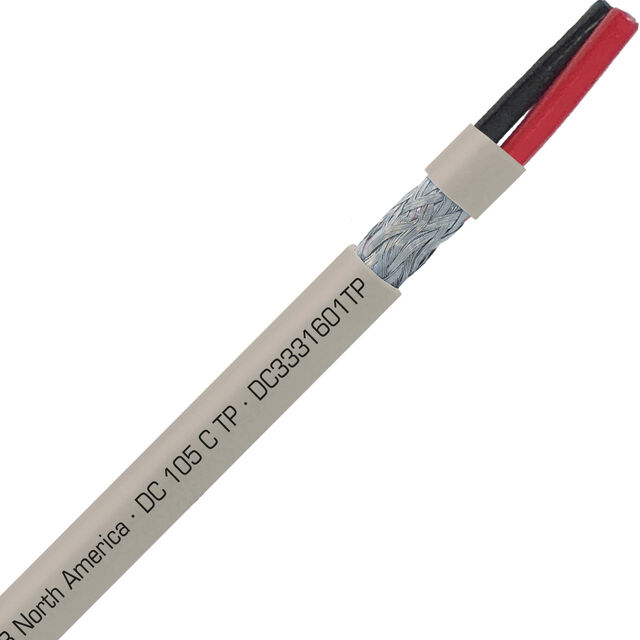

DC3331601TP

Active

SAB North America

MULTI-PAIR 2COND 16AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 2COND 16AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3331601TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.13 mm
Jacket (Insulation) Diameter [diameter]	0.32 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	16 AWG

Part	Features	Conductor Material	Jacket Color	Cable Type	Voltage	Shield Material	Shield Type	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]
SAB North America DC3331601TP	Oil Resistant	Copper Tinned	Gray	Multi-Pair	300 V	Copper Tinned	Braid Foil	2	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	8.13 mm	0.32 in	30 AWG	26	Enter Number of Feet in Order Quantity	16 AWG	-25 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Pair Cable Gray 16 AWG Foil, Braid Enter Number of Feet in Order Quantity
