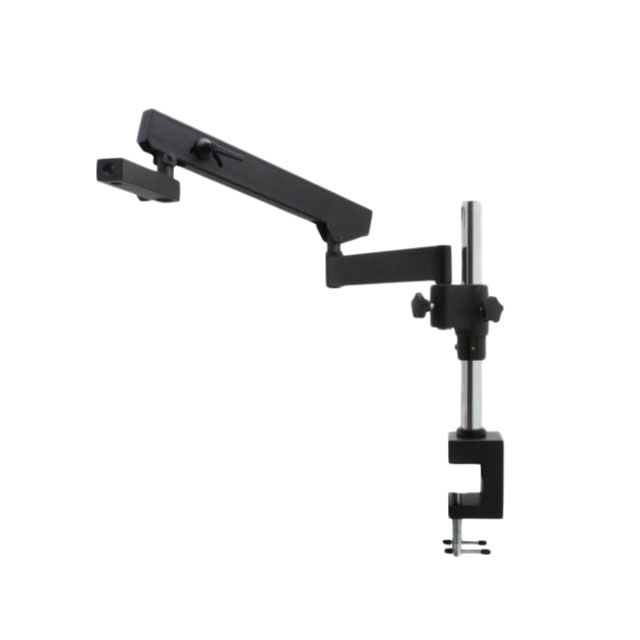

26800B-550-PCL

Active

Aven Tools

ARTICULATING ARM STAND WITH VERT

Search across all available documentation for this part.

Active

Aven Tools

ARTICULATING ARM STAND WITH VERT

Technical Specifications

Parameters and characteristics for this part

Specification	26800B-550-PCL

Arm Length	800 mm
Arm Length	31.5 in
Base Size [x]	4.09 in
Base Size [x]	104 mm
Base Size [y]	77 mm
Base Size [y]	3.03 in
For Use With/Related Products	Microscope
Type	Arm, Articulating

Part	Type	Field of View [Max]	Field of View [Min]	Field of View [Max]	Field of View [Min]	Illumination	Working Distance	Working Distance	Includes	Magnification Range [Min]	Magnification Range [Max]	Weight	Weight	For Use With/Related Products	Arm Length	Arm Length	Base Size [y]	Base Size [x]	Base Size [y]	Base Size [x]	Camera Type	Interface	Illumination	Features	Magnification Range
Aven Tools 26800B-373-1	Microscope Stereo Zoom (Trinocular)	34.29 mm	3.56 mm	1.35 in	0.14 in	LED	4.25 in	107.95 mm	Adapter Focus Mount Ring Light Stand	6.75 x	50 x
Aven Tools 26800B-351	Microscope Stereo Zoom (Binocular)					LED	3.3 in	84 mm	Dust Cover Rubber Eye Guards Tension Pin	20 x	135 x	15 lbs	6.8 kg
Aven Tools 26800B-550-PCL	Arm Articulating													Microscope	800 mm	31.5 in	77 mm	4.09 in	3.03 in	104 mm
Aven Tools 26800B-250	Microscope Stereo Zoom (Binocular)	20 mm	1.2 mm	0.79 in	0.05 "	LED	2.87 in	73 mm		11 x	75 x										CMOS
Aven Tools 26800B-552	Arm Articulating													Digital Microscopes Monitors	600 mm	23.6 in
Aven Tools 26800B-373-10	Microscope Stereo Zoom (Binocular)					Fiber Optic LED			Microscope Monitor Stand	6.7 x	50 x											USB	24 W
Aven Tools 26800B-521-207																								Focus Mount
Aven Tools 26800B-373-13	Microscope Stereo Zoom (Binocular)					Fiber Optic LED			Cable Microscope Monitor Stand													USB	24 W
Aven Tools 26800B-455-10	Eyepiece Focusing with Scale													SPZ Series											10 x
Aven Tools 26800B-521-517	Focus Mount													DSZ NSW SPZ SSZ Series Microscopes

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Arm, Articulating 31.5" (800.0mm)
