AB-FA024BL-19700-XA1

Active

American Bright Optoelectronics Corporation

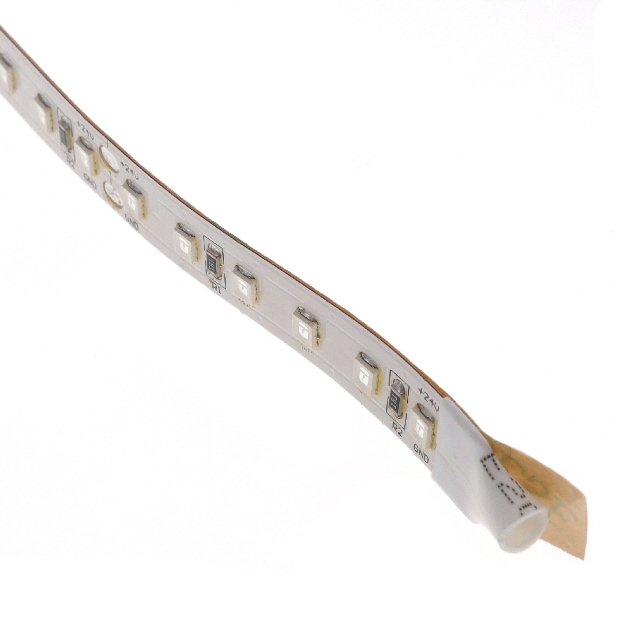

LED MOD AB-FA BLUE LNR STRIP

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA BLUE LNR STRIP

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FA024BL-19700-XA1

Color	Blue
Configuration	Linear Light Strip, Flexible
Current - Test	330 mA
Features	IP20
Height [z]	1.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	19 lm/W
Luminous Flux @ Current/Temperature	144 lm
Size / Dimension	50.00mm L per Segment
Size / Dimension [x]	5000 mm
Size / Dimension [y]	8 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V
Wavelength	470 nm
Wavelength [Max]	475 nm
Wavelength [Min]	465 nm

Part	Current - Max [Max]	Configuration	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Type	Viewing Angle	Color	Lens Type	Features	Wavelength	Wavelength [Min]	Wavelength [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension	Luminous Flux @ Current/Temperature	Height [z]	Lumens/Watt @ Current - Test
American Bright Optoelectronics Corporation AB-FA024UC-19700-XA2	625 mA	Flexible Linear Light Strip	125 mA	5000 mm	10 mm	LED Module	120 °	UltraViolet	Flat	IP20	275 nm	272 nm	278 nm	24 V
American Bright Optoelectronics Corporation AB-FA024BL-19700-XA1		Flexible Linear Light Strip	330 mA	5000 mm	8 mm	LED Module	120 °	Blue	Flat	IP20	470 nm	465 nm	475 nm	24 V	50.00mm L per Segment	144 lm	1.6 mm	19 lm/W
American Bright Optoelectronics Corporation AB-FA024UC-19700-XA1	525 mA	Flexible Linear Light Strip	105 mA	5000 mm	10 mm	LED Module	125 °	UltraViolet	Flat	IP20	275 nm	272 nm	278 nm	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FA Blue Linear Light Strip, Flexible
