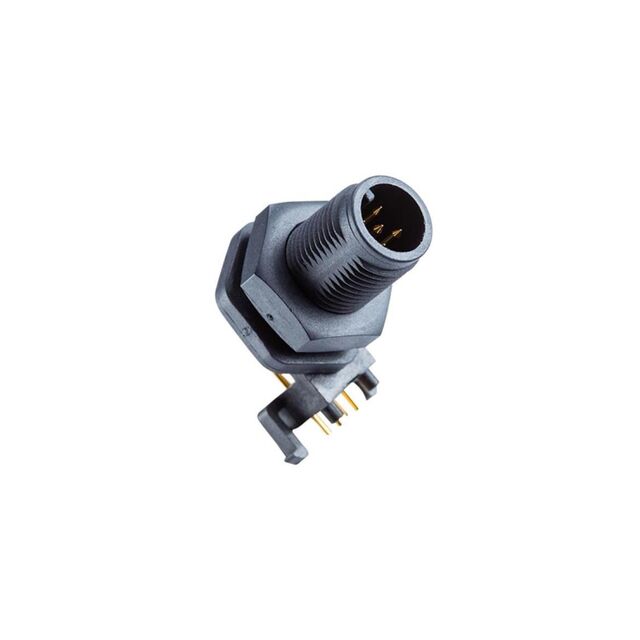

MSAP-04PMMR-SF8003

Active

Amphenol LTW

CONN M12 MALE RA 4PIN PLAST SLDR

Search across all available documentation for this part.

Active

Amphenol LTW

CONN M12 MALE RA 4PIN PLAST SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MSAP-04PMMR-SF8003

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Size - Insert	Number of Positions	Contact Material	Current Rating (Amps)	Primary Material	Shell Material	Orientation	Color	Voltage Rating	Connector Type	Ingress Protection	Insert Material	Contact Finish - Mating	Mounting Type	Features	Shielding
Amphenol LTW MSAP-04PMMR-SF8003	Solder	-40 °C	105 ░C	Bulkhead - Front Side Nut	M12-4	4	Copper Alloy	4 A	Plastic	Glass Filled Nylon Polyamide (PA)	A	Black	250 VDC	Male Pins Receptacle	IP68 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	Gold	Panel Mount Right Angle Through Hole	Board Guide Board Lock	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
