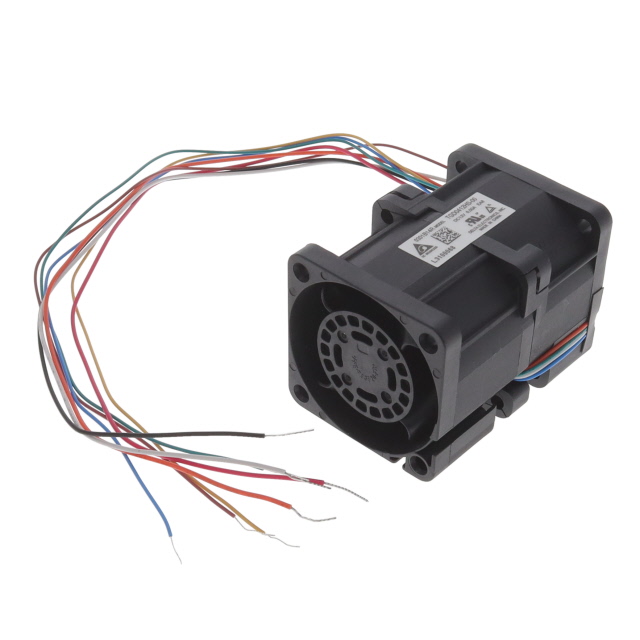

TGD0412HS-00EA8

Obsolete

Delta Electronics

FAN AXIAL DUAL 40X56MM 12VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL DUAL 40X56MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	TGD0412HS-00EA8

Air Flow	1.1 m³/min
Air Flow	39.3 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	3.5 A
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	73 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	42 W
RPM [custom]	27000 RPM
RPM [custom]	23000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	1444.7 Pa
Static Pressure	5.8 in H2O
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	91.17 g
Weight	0.201 lb
Width [x]	56 mm

Part	Power (Watts)	Termination	Voltage - Rated	Current Rating (Amps)	RPM [custom]	RPM [custom]	Voltage Range [Min]	Voltage Range [Max]	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Bearing Type	Approval Agency	Features	Fan Type	Material - Blade	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Lifetime @ Temp.	Width [x]	Weight	Weight	Air Flow	Air Flow
Delta Electronics TGD0412HS-00EA8	42 W	4 Wire Leads per Fan	12 VDC	3.5 A	27000 RPM	23000 RPM	10.8 VDC	12.6 VDC	73 dB(A)	70 °C	70 °C	-10 °C	-10 °C	Plastic	Ball	cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial (Dual)	Plastic	1444.7 Pa	5.8 in H2O	40 mm	Square	40 mm	70000 Hrs	56 mm	91.17 g	0.201 lb	1.1 m³/min	39.3 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 39.3 CFM (1.10m³/min) 4 Wire Leads per Fan
