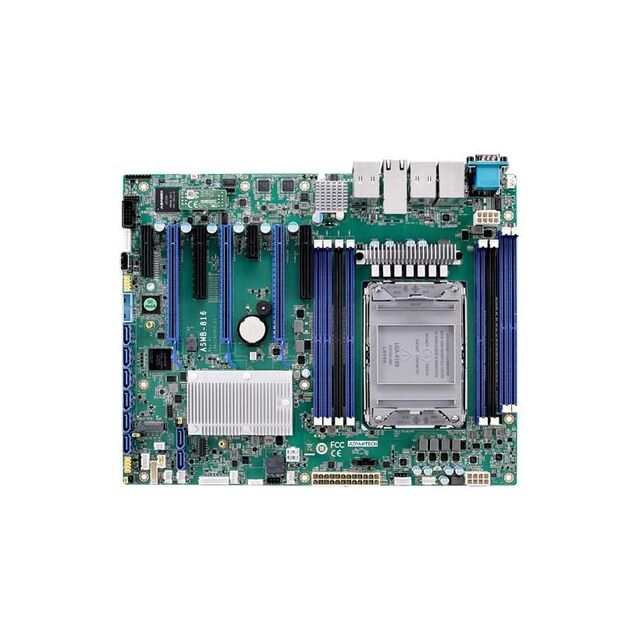

ASMB-816T2-00A1U

Active

Advantech Corp

SBC 1 CORE 512GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1 CORE 512GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ASMB-816T2-00A1U

Cooling Type	Fan
Core Processor	Intel Xeon Scalable Processors LGA 4189
Ethernet	RJ45, GbE
Expansion Site/Bus	M.2, SMBus, PCIe
Form Factor	ATX
Number of Cores	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed [custom]	512 GB
RAM Capacity/Installed [custom]	0 GB
Size / Dimension [x]	304.8 mm
Size / Dimension [x]	12 in
Size / Dimension [y]	243.84 mm
Size / Dimension [y]	9.6 in
Storage Interface	M.2, SATA III
USB	USB 2.0 (6), USB 3.2 (6)
Video Outputs	VGA
Watchdog Timer	True

Part	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Watchdog Timer	Ethernet	Video Outputs	Number of Cores	Core Processor	Storage Interface	Expansion Site/Bus	Cooling Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	USB	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor
Advantech Corp ASMB-816T2-00A1U	512 GB	0 GB		GbE RJ45	VGA	1	Intel Xeon Scalable Processors LGA 4189	M.2 SATA III	M.2 PCIe SMBus	Fan	243.84 mm	304.8 mm	9.6 in	12 in	USB 2.0 (6) USB 3.2 (6)	60 °C	0 °C	ATX
Advantech Corp ASMB-816T2-00A1	512 GB	0 GB		GbE RJ45	VGA	1	Intel Xeon Scalable Processors LGA 4189	M.2 SATA III	M.2 PCIe SMBus	Fan	243.84 mm	304.8 mm	9.6 in	12 in	USB 2.0 (6) USB 3.2 (6)	60 °C	0 °C	ATX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1349.01

General part information

Single Board Computer 1 Core 512GB/0GB RAM Intel Xeon Scalable Processors LGA 4189

Technical documentation and resources

No documents available
