9GV0612H102

Obsolete

Sanyo Denki America Inc.

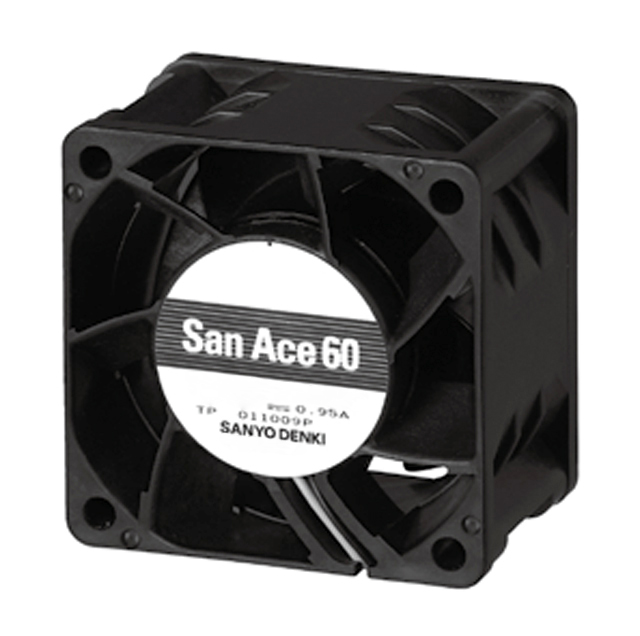

FAN AXIAL 60X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing

9GV0612H102

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GV0612H102

Air Flow	2.13 mł/min
Air Flow	76 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	63 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	24 W
RPM	14500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	617.7 Pa
Static Pressure	2.48 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	8 VDC
Weight	130.18 g
Weight	0.287 lb
Width [y]	38 mm

9GV0612 Series

Part	Width [y]	Material - Blade	Fan Type	Air Flow	Air Flow	Termination	RPM	Power (Watts)	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Static Pressure	Static Pressure	Voltage - Rated	Material - Frame	Noise	Lifetime @ Temp.	Features	Current Rating (Amps)
Sanyo Denki America Inc. 9GV0612H102	38 mm	Plastic	Tubeaxial	2.13 mł/min	76 CFM	2 Wire Leads	14500 RPM	24 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	617.7 Pa	2.48 in H2O	12 VDC	Plastic	63 dB	40000 Hrs
Sanyo Denki America Inc. 9GV0612G1011	38 mm	Plastic	Tubeaxial	2.35 mł/min	84 CFM	3 Wire Leads	16000 RPM	33.6 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	752.3 Pa	3.02 in H2O	12 VDC	Plastic		40000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	2.8 A
Sanyo Denki America Inc. 9GV0612P1G03	38 mm	Plastic	Tubeaxial	2.35 mł/min	84 CFM	4 Wire Leads	16000 RPM	33.6 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	752.3 Pa	3.02 in H2O	12 VDC	Plastic		40000 Hrs	PWM Control Speed Sensor (Tach)	2.8 A
Sanyo Denki America Inc. 9GV0612P1G031	38 mm	Plastic	Tubeaxial	2.35 mł/min	84 CFM	4 Wire Leads	16000 RPM	33.6 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	752.3 Pa	3.02 in H2O	12 VDC	Plastic		40000 Hrs	PWM Control Speed Sensor (Tach)	2.8 A
Sanyo Denki America Inc. 9GV0612L1D011	38 mm	Plastic	Tubeaxial	1.47 mł/min	52.6 CFM	3 Wire Leads	10000 RPM	8.4 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	10.8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	291.4 Pa	1.17 in H2O	12 VDC	Plastic	52 dB	40000 Hrs	Locked Rotor Sensor	0.7 A
Sanyo Denki America Inc. 9GV0612G1021	38 mm	Plastic	Tubeaxial	2.35 mł/min	84 CFM	2 Wire Leads	16000 RPM	33.6 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	752.3 Pa	3.02 in H2O	12 VDC	Plastic		40000 Hrs		2.8 A
Sanyo Denki America Inc. 9GV0612M101	38 mm		Tubeaxial			3 Wire Leads		18 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb							Ball			12 VDC				Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0612P1M03	38 mm	Plastic	Tubeaxial	1.9 m³/min	68 CFM	4 Wire Leads	13000 RPM	18 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	495.7 Pa	1.99 in H2O	12 VDC	Plastic	60 dB(A)	40000 Hrs	PWM Control Speed Sensor (Tach)	1.5 A
Sanyo Denki America Inc. 9GV0612P1M031	38 mm	Plastic	Tubeaxial	1.9 m³/min	68 CFM	4 Wire Leads	13000 RPM	18 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	495.7 Pa	1.99 in H2O	12 VDC	Plastic	60 dB(A)	40000 Hrs	PWM Control Speed Sensor (Tach)	1.5 A
Sanyo Denki America Inc. 9GV0612P1H03	38 mm	Plastic	Tubeaxial	2.13 mł/min	76 CFM	4 Wire Leads	14500 RPM	24 W	CSA TUV UL	60 mm	60 mm	130.18 g	0.287 lb	8 VDC	13.8 VDC	-20 °C	70 °C	-20 C	70 °C	Ball	617.7 Pa	2.48 in H2O	12 VDC	Plastic	63 dB	40000 Hrs	PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

9GV0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 76.0 CFM (2.13m³/min) 2 Wire Leads
