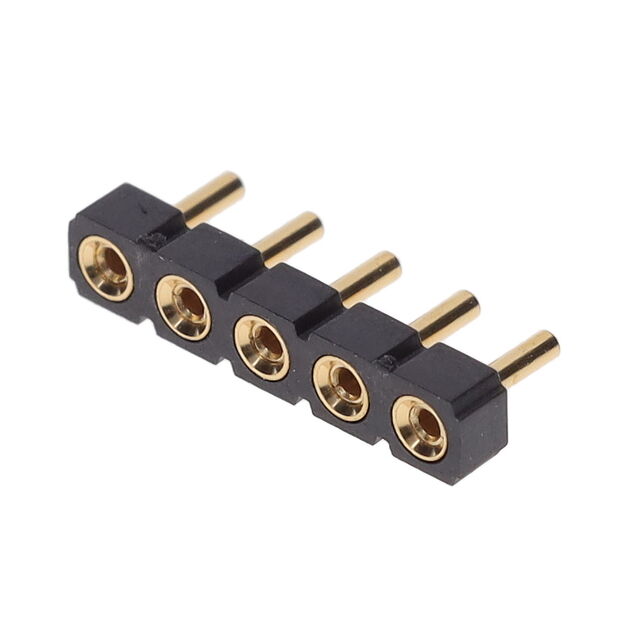

315-13-105-41-003000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

315-13-105-41-003000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	315-13-105-41-003000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	2.41 mm
Contact Length - Post [x]	0.095 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.8 mm
Insulation Height	0.071 "
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	100 V, 150 VDC

315-13 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Material	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Voltage Rating	Current Rating (Amps)	Material Flammability Rating	Connector Type	Contact Shape	Number of Positions Loaded	Termination	Contact Finish - Mating	Number of Rows	Contact Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Material - Mating	Pitch - Post	Pitch - Post	Contact Material - Post	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid)	Housing Material	Type	Termination Post Length	Termination Post Length
Mill-Max Manufacturing Corp. 315-13-104-41-001000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm	0.108 in	2.75 mm	30 Áin	0.76 Ám	4	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull
Mill-Max Manufacturing Corp. 315-13-150-61-003000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm			30 Áin	0.76 Ám	50	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull	2.41 mm	0.095 in	1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 315-13-132-61-003000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm			30 Áin	0.76 Ám		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull	2.41 mm	0.095 in	1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 315-13-133-41-003000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm			30 Áin	0.76 Ám	33	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull	2.41 mm	0.095 in	1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 315-13-120-41-003000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm			30 Áin	0.76 Ám	20	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull	2.41 mm	0.095 in	1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 315-13-105-41-003000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm			30 Áin	0.76 Ám		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull	2.41 mm	0.095 in	1.8 mm	0.071 "
Mill-Max Manufacturing Corp. 315-13-150-41-001000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm	0.108 in	2.75 mm	30 Áin	0.76 Ám	50	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull
Mill-Max Manufacturing Corp. 315-13-164-41-001000	-55 °C	125 °C		10 çin	0.25 çm			30 Áin	0.76 Ám			Through Hole	0.1 in	2.54 mm	Gold			3 A					Solder	Gold								Beryllium Copper	2.54 mm	0.1 in	Brass Alloy	0.108 in	2.74 mm	64	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	SIP
Mill-Max Manufacturing Corp. 315-13-164-41-003000	-55 °C	125 °C		10 çin	0.25 çm			30 Áin	0.76 Ám			Through Hole	0.1 in	2.54 mm	Gold			3 A					Solder	Gold								Beryllium Copper	2.54 mm	0.1 in	Brass Alloy			64	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	SIP	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 315-13-155-61-003000	-55 °C	125 °C	Beryllium Copper	10 çin	0.25 çm			30 Áin	0.76 Ám	55 positions	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	0.1 in	2.54 mm	Gold	Black	100 V 150 VDC	3 A	UL94 V-0	Receptacle	Circular	All	Solder	Gold	1	Female Socket	Push-Pull	2.41 mm	0.095 in	1.8 mm	0.071 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.18
		40	$ 12.42
		120	$ 11.73
		520	$ 10.00
		1000	$ 9.17

Description

General part information

315-13 Series

5 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
