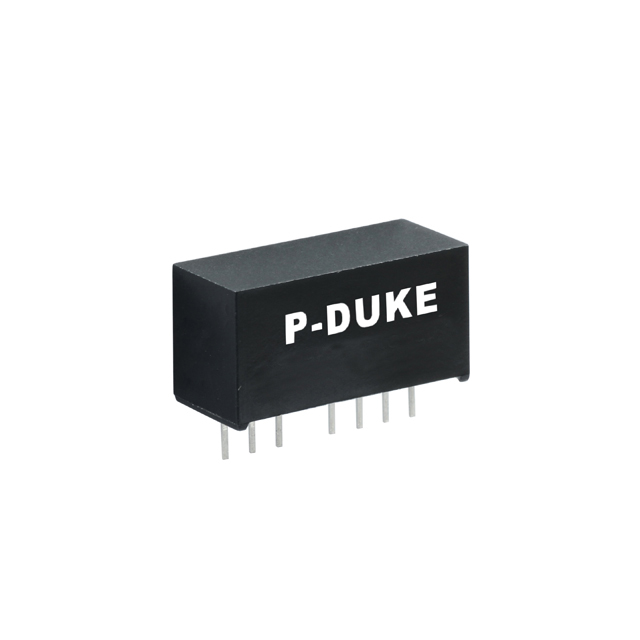

EDL02-24D15
ActiveP-DUKE Technology
DC DC CONVERTER +/-15V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EDL02-24D15
ActiveP-DUKE Technology
DC DC CONVERTER +/-15V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EDL02-24D15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 67 mA |
| Current - Output (Max) | 67 mA |
| Efficiency | 86 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [z] | 11.2 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.97 | |
| 10 | $ 10.52 | |||
| 30 | $ 9.89 | |||
| 50 | $ 9.61 | |||
| 100 | $ 9.25 | |||
| 250 | $ 8.79 | |||
| 500 | $ 8.45 | |||
| 1000 | $ 8.13 | |||
Description
General part information
EDL02 Series
Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 18V - 36V Input
