11SM3-T2

Active

Honeywell Sensing and Productivity Solutions

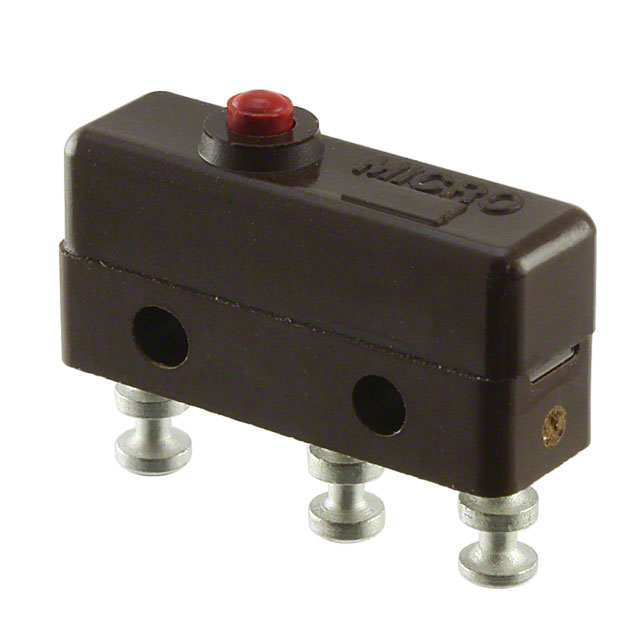

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11SM3-T2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11SM3-T2

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.1 mm
Differential Travel	0.004 in
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	141 gf
Operating Position	8.4 mm
Operating Position	0.33 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overtravel	0.13 mm
Overtravel	0.005 in
Pretravel	0.02 in
Pretravel	0.5 mm
Release Force	28 gf
Switch Function	On-Mom
Termination Style	Solder Turret
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V

11SM3 Series

Part	Differential Travel	Differential Travel	Actuator Type	Release Force	Circuit	Mechanical Life	Operating Position	Operating Position	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Operating Force	Switch Function	Termination Style	Pretravel	Pretravel	Overtravel	Overtravel
Honeywell Sensing and Productivity Solutions 11SM703-T	0.002 in	0.05 mm	Round (Pin Plunger)	14 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount	4 A 5 A	-55 °C	125 °C	250 V	56 gf	On-Mom	Solder Turret	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM861-T	0.004 in	0.1 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount	5 A	-55 °C	125 °C	250 V	198 gf	On-Mom	Solder Turret	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM144-H2	0.002 in	0.05 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Through Hole	5 A	-55 °C	125 °C	250 V	85 gf	On-Mom	PC Pin	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM3-T2	0.004 in	0.1 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount	5 A	-55 °C	125 °C	250 V	141 gf	On-Mom	Solder Turret	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM3-H58	0.004 in	0.1 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount	5 A	-55 °C	125 °C	250 V	141 gf	On-Mom	Quick Connect - 0.058 in (Round)	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM423	0.001 in	0.025 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount		-55 °C	125 °C	125 V	99 gf	On-Mom	Solder Lug	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM701-T	0.002 in	0.05 mm	Round (Pin Plunger)	14 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount	4 A 5 A	-55 °C	125 °C	250 V	56 gf	On-Mom	Solder Turret	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM8849-H58	0.004 in	0.1 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount	5 A	-55 °C	125 °C	250 V	141 gf	On-Mom	Quick Connect - 0.058 in (Round)	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM401-T	0.001 in	0.025 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Chassis Mount	5 A	-55 °C	125 °C	250 V	99 gf	On-Mom	Solder Turret	0.02 in	0.5 mm	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions 11SM23-H2	0.004 in	0.1 mm	Round (Pin Plunger)	28 gf	SPDT	10000000 Cycles	8.4 mm	0.33 in	30 V	Through Hole		-55 °C	125 °C	125 V	141 gf	On-Mom	PC Pin	0.02 in	0.5 mm	0.13 mm	0.005 in
