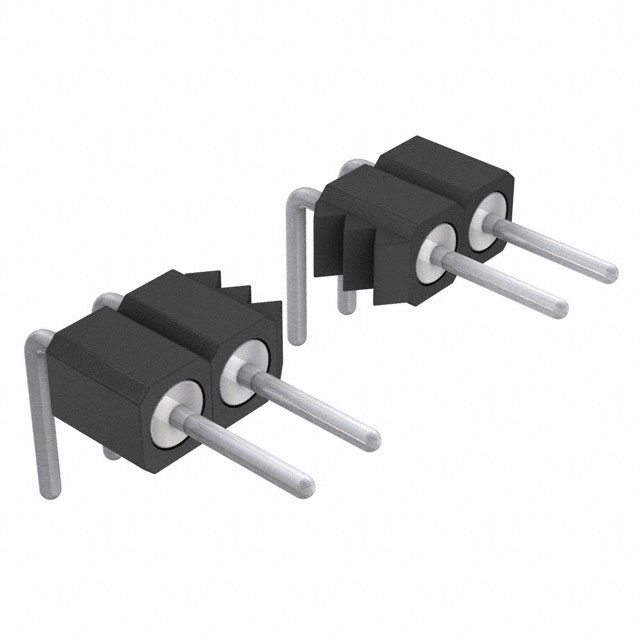

830-80-033-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 33POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

830-80-033-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 33POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	830-80-033-20-001101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	33
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

830-80 Series

...

Part	Connector Type	Voltage Rating	Shrouding	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Current Rating (Amps)	Insulation Color	Termination	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Features	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]
PRECI-DIP SA 830-80-041-40-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder	0.087 "	2.2 mm	Tin	41	Surface Mount Right Angle	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1
PRECI-DIP SA 830-80-031-30-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder			Tin	31	Surface Mount	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1
PRECI-DIP SA 830-80-006-30-001191	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder			Tin	6	Surface Mount	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1	Pick and Place
PRECI-DIP SA 830-80-009-40-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder	0.087 "	2.2 mm	Tin	9	Surface Mount Right Angle	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1
PRECI-DIP SA 830-80-009-40-001191	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder	0.087 "	2.2 mm	Tin	9	Surface Mount Right Angle	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1
PRECI-DIP SA 830-80-041-10-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder			Tin	41	Through Hole	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1		10 mm	0.394 in	0.114 in	2.9 mm
PRECI-DIP SA 830-80-021-30-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder			Tin	21	Surface Mount	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1
PRECI-DIP SA 830-80-017-40-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder	0.087 "	2.2 mm	Tin		Surface Mount Right Angle	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1
PRECI-DIP SA 830-80-011-40-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder	0.087 "	2.2 mm	Tin	11	Surface Mount Right Angle	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1
PRECI-DIP SA 830-80-033-20-001101	Header	150 VDC	Unshrouded	Push-Pull	0.141 in	3.6 mm	Brass	3 A	Black	Solder	0.087 "	2.2 mm	Tin	33	Through Hole Right Angle	All	UL94 V-0	Male Pin	-55 °C	125 °C	Circular	0.079 in	2 mm	1					3.2 mm	0.126 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	180	$ 4.49

Description

General part information

830-80 Series

Connector Header Through Hole, Right Angle 33 position 0.079" (2.00mm)
