H3KKH-1006G

Active

Assmann WSW Components

IDC CBL - HHPK10H/AE10G/HHPK10H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHPK10H/AE10G/HHPK10H

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Length	Length	Length	Number of Positions	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Length [x]	Length [x]	Color
Assmann WSW Components H3KKH-1006G	2	0.1 in	2.54 mm	Polarizing Key	IDC	152.4 mm	6 "	0.5 '	10	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Plug to Plug	Gold
Assmann WSW Components H3KKH-1036M	2	0.1 in	2.54 mm	Polarizing Key	IDC				10	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Plug to Plug	Gold	3 ft	914.4 mm	Multiple Ribbon
Assmann WSW Components H3KKH-1036G	2	0.1 in	2.54 mm	Polarizing Key	IDC				10	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Plug to Plug	Gold	3 ft	914.4 mm
Assmann WSW Components H3KKH-1018M	2	0.1 in	2.54 mm	Polarizing Key	IDC				10	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	Plug to Plug	Gold	1.5 ft	457.2 mm	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

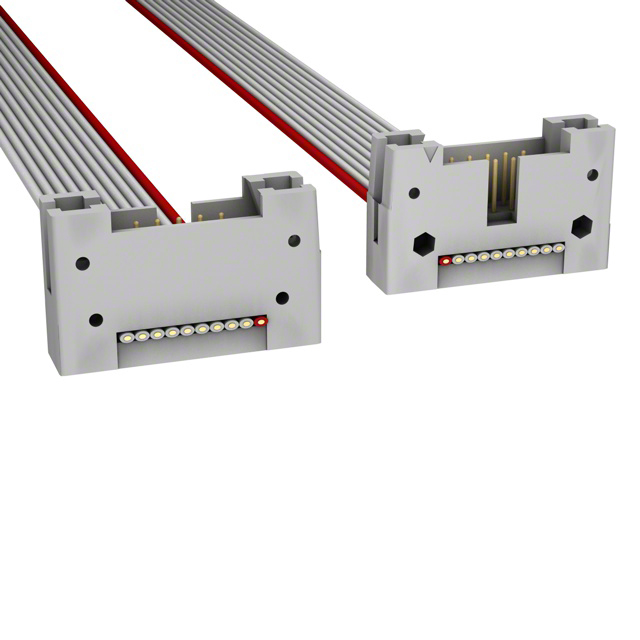

10 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
