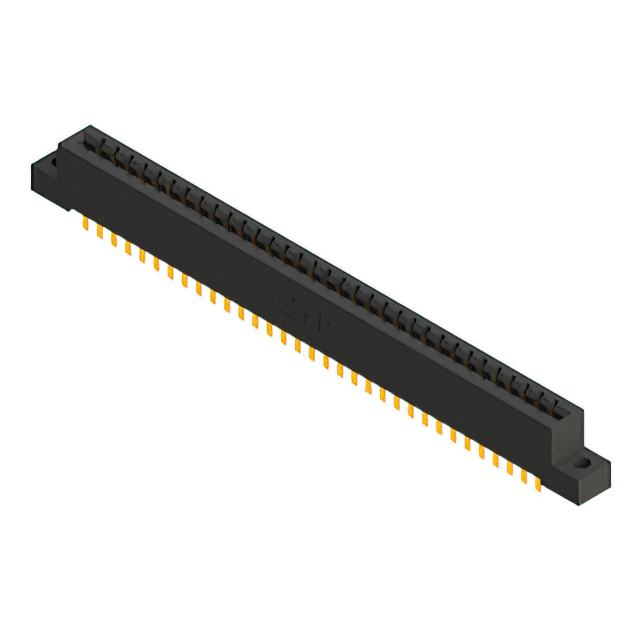

887-066-500-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-066-500-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-066-500-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

887-066 Series

...

Part	Number of Positions	Flange Feature	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Color	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Mounting Type	Read Out	Termination Rows	Contact Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Gender	Material - Insulation	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 887-066-520-208	66	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	Dual	2	Copper Alloy	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33
EDAC Inc. 887-066-559-812	66	Side Mount Opening Unthreaded	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole Right Angle	Dual	2	Copper Alloy	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33	3.25 mm	0.128 in
EDAC Inc. 887-066-555-808	66	4-40 Threaded Insert Top Mount Opening	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Board Edge Straddle Mount	Dual	2	Copper Alloy	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33			Card Extender
EDAC Inc. 887-066-500-204	66	Flush Mount Top Opening Unthreaded	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	Dual	2	Copper Alloy	Solder Eyelet(s)	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33				3.96 mm	0.156 in
EDAC Inc. 887-066-541-812	66	Side Mount Opening Unthreaded	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	Dual	2	Copper Alloy	Wire Wrap	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33	3.25 mm	0.128 in
EDAC Inc. 887-066-541-804	66	Top Mount Opening Unthreaded	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	Dual	2	Copper Alloy	Wire Wrap	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33				3.96 mm	0.156 in
EDAC Inc. 887-066-542-804	66	Top Mount Opening Unthreaded	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	Dual	2	Copper Alloy	Wire Wrap	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33				3.96 mm	0.156 in
EDAC Inc. 887-066-555-803	66	Floating Bobbin Top Mount Opening	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Board Edge Straddle Mount	Dual	2	Copper Alloy	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33			Card Extender	2.95 mm	0.116 in
EDAC Inc. 887-066-556-212	66	Flush Mount Side Opening Unthreaded	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Board Edge Straddle Mount	Dual	2	Copper Alloy	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33			Card Extender	3.25 mm	0.128 "
EDAC Inc. 887-066-521-202	66	Flush Mount Top Opening Unthreaded	Cantilever	10 Áin	0.25 Ám	2	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	Dual	2	Copper Alloy	Solder	125 °C	-40 °C	0.156 in	3.96 mm	Female	Polyphenylene Sulfide (PPS)	33				3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 139.67
Newark	Each	1	$ 187.64
		100	$ 107.59
		250	$ 73.64
		500	$ 64.23
		1000	$ 53.25

Description

General part information

887-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Documents

Technical documentation and resources
