Q-3F056000H084I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-PLUG 7'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-PLUG 7'

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	Length	Length	Length	1st Connector Mounting Type	Cable Type	Frequency - Max [Max]	2nd Contact Gender	Features	Style	Connector Impedance	Cable Impedance	1st Connector	Color	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-3F056000H084I	Free Hanging (In-Line)	50 Ohms	Male	84 in	2.1 m	7 ft	Free Hanging (In-Line)	RG-142	11 GHz	Male	Shielded	SMA to TNC	50 Ohms	50 Ohms	SMA Plug	Copper	TNC Plug
Amphenol Custom Cable Q-3F056000H009I	Free Hanging (In-Line)	50 Ohms	Male	9 "	228.6 mm		Free Hanging (In-Line)	RG-142	11 GHz	Male	Shielded	SMA to TNC	50 Ohms	50 Ohms	SMA Plug	Copper	TNC Plug
Amphenol Custom Cable Q-3F056000H036I	Free Hanging (In-Line)	50 Ohms	Male	36 in	91.44 cm		Free Hanging (In-Line)	RG-142	11 GHz	Male	Shielded	SMA to TNC	50 Ohms	50 Ohms	SMA Plug	Copper	TNC Plug
Amphenol Custom Cable Q-3F056000H2.5M	Free Hanging (In-Line)	50 Ohms	Male	98.4 in	2.5 m	8.2 '	Free Hanging (In-Line)	RG-142	11 GHz	Male	Shielded	SMA to TNC	50 Ohms	50 Ohms	SMA Plug	Copper	TNC Plug
Amphenol Custom Cable Q-3F056000H018I	Free Hanging (In-Line)	50 Ohms	Male				Free Hanging (In-Line)	RG-142	11 GHz	Male	Shielded	SMA to TNC	50 Ohms	50 Ohms	SMA Plug	Copper	TNC Plug	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3F056000H108I	Free Hanging (In-Line)	50 Ohms	Male	108 in	2.7 m	9 ft	Free Hanging (In-Line)	RG-142	11 GHz	Male	Shielded	SMA to TNC	50 Ohms	50 Ohms	SMA Plug	Copper	TNC Plug
Amphenol Custom Cable Q-3F056000H072I	Free Hanging (In-Line)	50 Ohms	Male	72 in	1.8 m	6 ft	Free Hanging (In-Line)	RG-142	11 GHz	Male	Shielded	SMA to TNC	50 Ohms	50 Ohms	SMA Plug	Copper	TNC Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

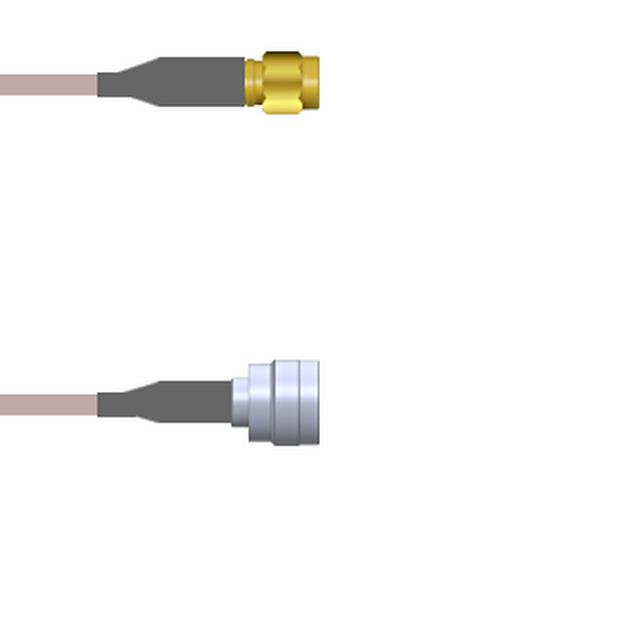

Cable Assembly Coaxial SMA to TNC RG-142 84.0" (2.1m) 7.0'

Technical documentation and resources

No documents available
