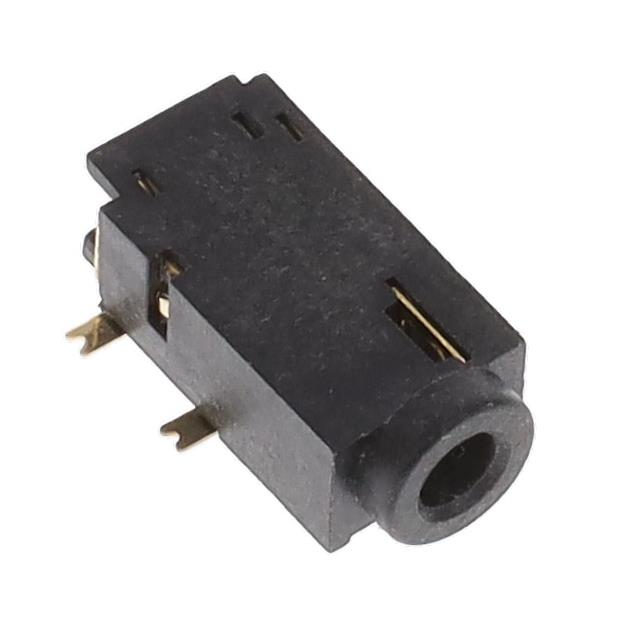

ASJ-103-J-T/R

Active

Adam Tech

AUDIO JACK

Search across all available documentation for this part.

Active

Adam Tech

AUDIO JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ASJ-103-J-T/R

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	0.5 A
Features	Board Guide
Gender	Female
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	2.5 mm ID
Industry Recognized Mating Diameter [diameter]	0.098 "
Insulation Color	Black
Internal Switch(s)	Single Switch
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts [custom]	5
Number of Positions/Contacts [custom]	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	30 V

Part	Internal Switch(s)	Gender	Contact Material - Plating [custom]	Shielding	Connector Type	Body Color	Housing Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Insulation Color	Voltage - Rated	Signal Lines	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Adam Tech ASJ-103-J-T/R	Single Switch	Female	Gold	Unshielded	Phone Jack	Black	Thermoplastic	Brass	-20 C	70 °C	0.5 A	Solder	2.6 mm	0.102 in	Surface Mount Right Angle	Black	30 V	Stereo	2.5 mm ID	0.098 "	Board Guide	5	4
