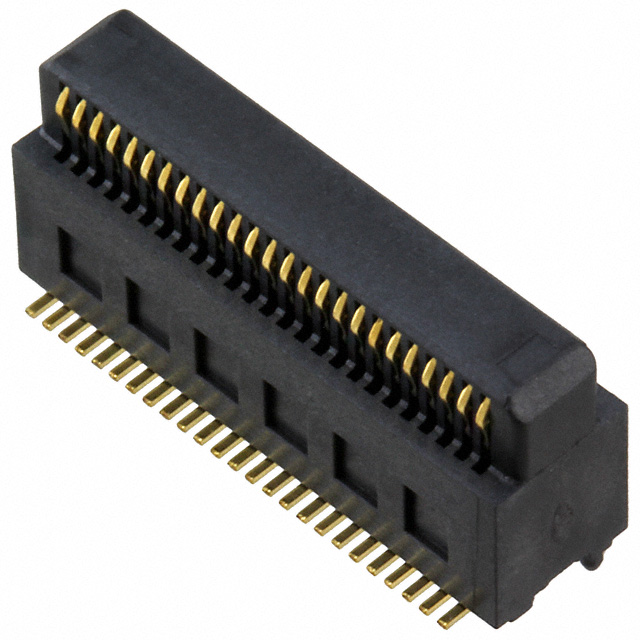

WR-40SB-VFH05-N1

Active

JAE Electronics

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-40SB-VFH05-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	3.75 mm
Height Above Board	0.148 in
Mated Stacking Heights	6.5 mm, 4.5 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish
JAE Electronics WR-40SB-VFH05-N1	2	40	3.75 mm	0.148 in	Board Guide	Surface Mount	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	4.5 mm 5.5 mm 6.5 mm	Gold
JAE Electronics WR-40SB-VF-N1	2	40	3.25 mm	0.128 in	Board Guide	Surface Mount	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	4 mm 5 mm 6 mm	Gold
JAE Electronics WR-40SB-VFH30-N1-R1000	2	40	6.25 mm	0.246 in	Board Guide	Surface Mount	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	7 mm 8 mm 9 mm	Gold
JAE Electronics WR-40SB-VFH30-N1	2	40	6.25 mm	0.246 in	Board Guide	Surface Mount	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	0.5 mm	0.02 in	7 mm 8 mm 9 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	268	$ 3.00

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
