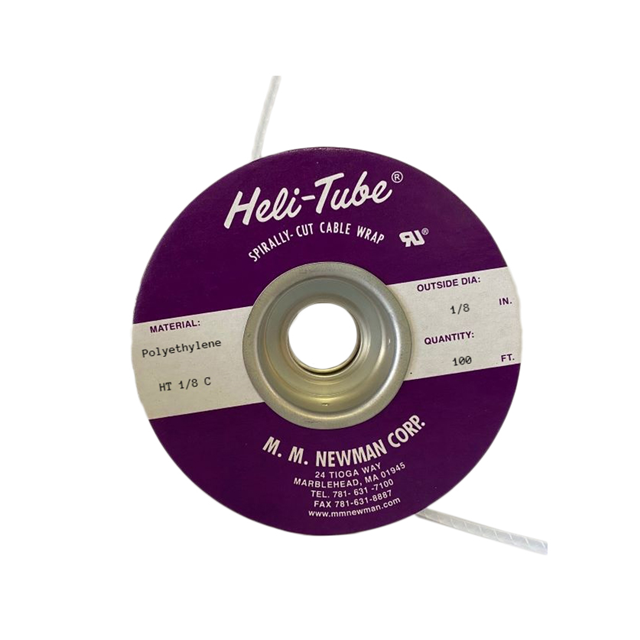

HT 1/8 C

Active

MM Newman Corporation

SPIRAL WRAP 0.061" X 100' NAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1/8 C

Active

MM Newman Corporation

SPIRAL WRAP 0.061" X 100' NAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT 1/8 C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	12.7 mm
Diameter - Inside, Expanded [diameter]	0.5 in
Diameter - Inside, Non-Expanded [diameter]	1.55 mm
Diameter - Inside, Non-Expanded [diameter]	0.061 in
Diameter - Outside, Non-Expanded [diameter]	3.18 mm
Diameter - Outside, Non-Expanded [diameter]	0.125 in
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	0.032 in
Wall Thickness	0.81 mm

HT 1/8 Series

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Length	Length	Abrasion Protection	Material	Wall Thickness	Wall Thickness	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Type	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Environment Protection	Heat Protection	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating
MM Newman Corporation HT 1/8 C	Natural	-60 °C	88 °C	3.18 mm	0.125 in	100 ft	30.48 m	Abrasion Resistant	Polyethylene (PE)	0.032 in	0.81 mm	1.55 mm	0.061 in	Harness	Spiral Wrap	Chemical Resistant Solvent Resistant	12.7 mm	0.5 in
MM Newman Corporation HT 1/8 UR	Black	-60 °C	88 °C	3.18 mm	0.125 in	100 ft	30.48 m	Abrasion Resistant	Polyethylene (PE)	0.032 in	0.81 mm	1.55 mm	0.061 in	Harness	Spiral Wrap	Chemical Resistant Solvent Resistant	12.7 mm	0.5 in
MM Newman Corporation HT 1/8 T2	Natural	-268 °C	260 ░C	3.18 mm	0.125 in	100 ft	30.48 m	Abrasion Resistant	Polytetrafluoroethylene (PTFE)			1.65 mm	0.065 in	Harness	Spiral Wrap	Chemical Resistant Solvent Resistant	12.7 mm	0.5 in	UV Resistant	Fire Resistant	0.51 mm	0.02 in	UL VW-1 UL94 V-0
MM Newman Corporation HT 1/8 R	White	-20 C	80 C	3.18 mm	0.125 in	100 ft	30.48 m	Abrasion Resistant	Polyethylene (PE)	0.032 in	0.81 mm	1.55 mm	0.061 in	Harness	Spiral Wrap	Chemical Resistant Solvent Resistant	12.7 mm	0.5 in		Fire Resistant			UL94 V-2 UL1441
MM Newman Corporation HT 1/8 N	Natural	-40 °C	121 °C	3.18 mm	0.125 in	100 ft	30.48 m	Abrasion Resistant	Nylon	0.015 in	0.38 mm	2.41 mm	0.095 in	Harness	Spiral Wrap	Chemical Resistant Self Extinguishing Solvent Resistant	12.7 mm	0.5 in
MM Newman Corporation HT 1/8 T1	Natural	-268 °C	260 ░C	3.18 mm	0.125 in	100 ft	30.48 m	Abrasion Resistant	Polytetrafluoroethylene (PTFE)			2.16 mm	0.085 in	Harness	Spiral Wrap	Chemical Resistant Solvent Resistant	12.7 mm	0.5 in	UV Resistant	Fire Resistant	0.76 mm	0.03 in	UL VW-1 UL94 V-0
MM Newman Corporation HT 1/8 R-B	Black	-20 C	80 C	3.18 mm	0.125 in	100 ft	30.48 m	Abrasion Resistant	Polyethylene (PE)	0.032 in	0.81 mm	1.55 mm	0.061 in	Harness	Spiral Wrap	Chemical Resistant Solvent Resistant	12.7 mm	0.5 in		Fire Resistant			UL94 V-2 UL1441

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 31.43
		10	$ 24.78

Description

General part information

HT 1/8 Series

Spiral Wrap 0.125" (3.18mm) X 100' (30.48m) Natural
